Work through the build the way you would spec it — parts, substrate, contaminant, frequency, automation, filtration, duty, site rules — and the build assembles itself on the right, with a build code you can put straight on a purchase requisition. An engineer verifies every projection before pricing.

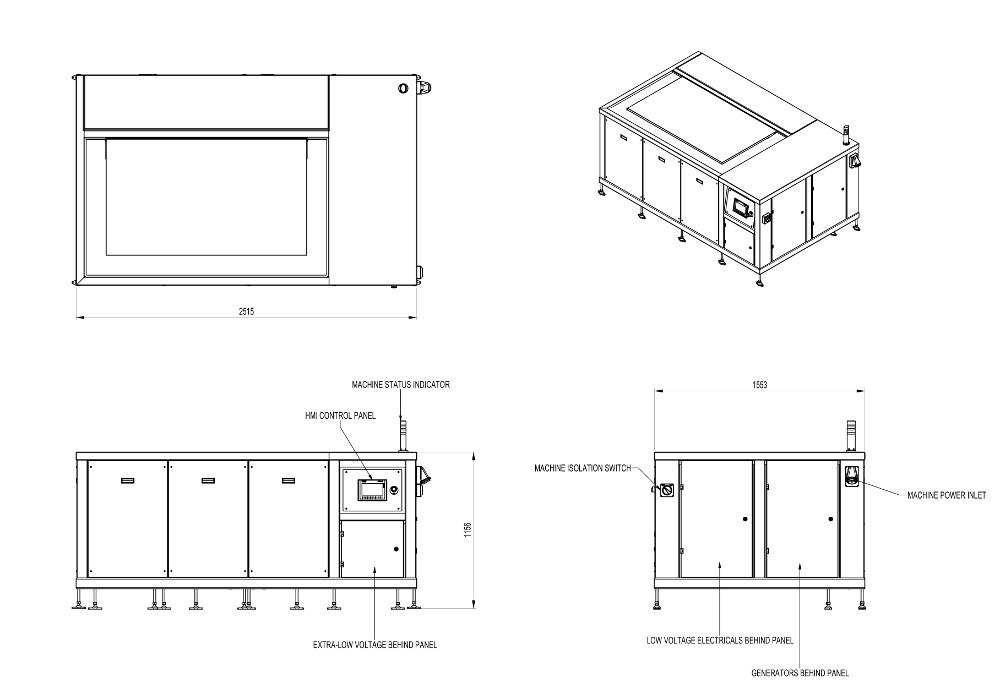

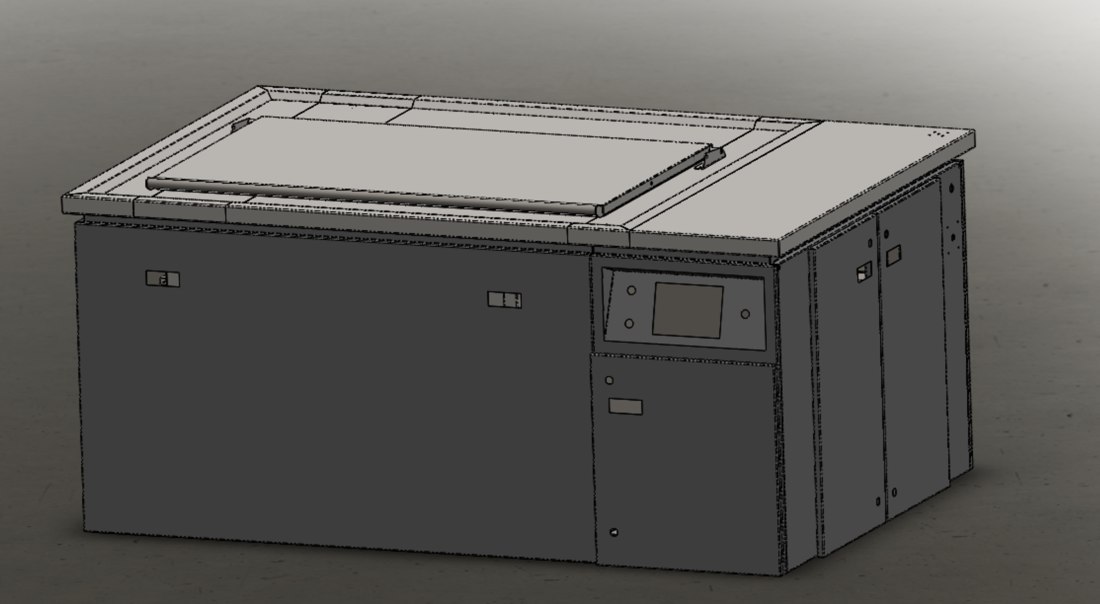

370 L custom build — the engineering model. Sliding double lid, side-mounted HMI, drawn around the customer’s basket and floor.400 L custom build — delivered. The same process you are about to run: specification, drawing, build, commissioning.
1
Part size class
Component
Heads, pumps, housings to 500 × 400 × 300 mm
Assembly
Blocks, cores, gearboxes to 1000 × 600 × 450 mm
Bundle / frame
HX bundles, long frames to 1500 × 900 × 600 mm
Oversize
Large fabrications to 2200 × 1200 × 900 mm
Beyond the chart
We survey and draw it around the part
Know the exact envelope? Refine it (optional) — the projection updates.
2
The parts — substrate & contaminant
Substrate (select all that apply)
Ferrous / cast iron
Blocks, heads, tooling
Stainless
304/316, food & process
Aluminium
Housings, cores, castings
Copper / brass
Cores, bushes, fittings
Plated / coated
Cd, anodise, paint to keep
Mixed / not sure
The trial confirms compatibility
Primary contaminant
Oils & grease
Sump, hydraulic, wash-bay film
Carbon & baked
Coke, varnish, thermal soils
Scale & rust
Waterside scale, corrosion
Ash & particulate
DPF ash, dust, fines
Polymer & paint
Melt, coatings, adhesives
Mixed / unsure
The trial decides the chemistry
3
Ultrasonic frequency
25 kHz
The industrial demolition band — heavy carbon, grease, scale
40 kHz
The precision band — finer parts, finished surfaces
Dual 25 / 40
Demolish then finish — engineered dual-array build
4
Automation level
Manual
Operator loads and lifts — hoist points provided
Elevator platform
Deck-height loading, powered immersion, drain hold
Agitating platform
Platform oscillates the load — the even clean
+ Automated lid
Motorised lid over the agitating platform
5
Bath defence & filtration
Drain only
Ball-valve drain, no loop
1-filter loop
Single stainless housing
2-filter loop
Coarse + fine, staged
Final filtration rating — standard cartridge sizes
100 µm
80 µm
50 µm
20 µm
10 µm
5 µm
1 µm
0.5 µm
6
Duty & throughput
Single shift
Standard duty, daily cycles
Two shift
Extended duty rating
Continuous 24/7
Full continuous rating — production critical
7
Site chemistry constraints
Some sites prohibit chemical classes outright — tell us up front and the process is designed inside the rules. Select all that apply.
No caustics
High-pH alkaline excluded
No acids
Acid stages excluded
No DG Class 8
No corrosives classified for dangerous-goods storage
Aqueous only
No solvent chemistry
Food-plant approved
Approved-list chemistry only
Not sure
We advise against your site rules
8
Additional process & site
Rinse stage
Matching heated rinse tank
Drying
Hot-air dry to finish
Remote diagnostics
Over-the-air PLC support
Bunding
Integrated spill containment for the tank & chemistry
Safety pack
Interlocks, guarding, light stack
Access deck
Stairs and rails for big tanks
9
Anything else we should know
Your build
Custom EVS
EVS-C-…
Part envelope—
Substrate—
Contaminant—
Tank (internal)—
Total tank volume—
Ultrasonics—
Heating · supply—
Automation—
Filtration—
Suggested chemistry—
Chemistry constraints—
Duty rating—
Throughput · cycle—
Additional process—
Projection standardised on the EVS platform — allowances and W/L from the range. Final engineering by Misonics, always.
Same-day engineering response during business hours.
Accessory
Integrated work areas
Bunding to catch what comes off the load, a raised grated deck so the work happens at working height, and a screened washbay for the wet work beside the bath.
Built into the machine from the start, or as a separate unit that drops in beside one already on the floor. Quoted as its own line, ex GST.
Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
