EvoSonic Heavy · 1,500–10,000 L

EvoSonic Heavy

Heavy Industrial Duty

Heavy-duty tanks for the largest and heaviest parts: heat-exchanger bundles, engine blocks, cores, frames and filter elements. The load goes in by hoist or crane, or on the optional powered platform, which lowers it into the bath and raises it to drain. Automated lids are optional too. Filtration is optional, as a filter loop or a kidney loop. When the part is bigger than the standard tanks, we design a custom EVS around it.

1,500–10,000 Ltank volume

25 kHzindustrial band

63,000 Wsonics, up to

42generators, up to

136 kWconnected, up to

Custombuilt to your part

Compare the tanks Request a site quote

All machines quoted to site, ex GST.

Smaller tanks? See EvoSonic →

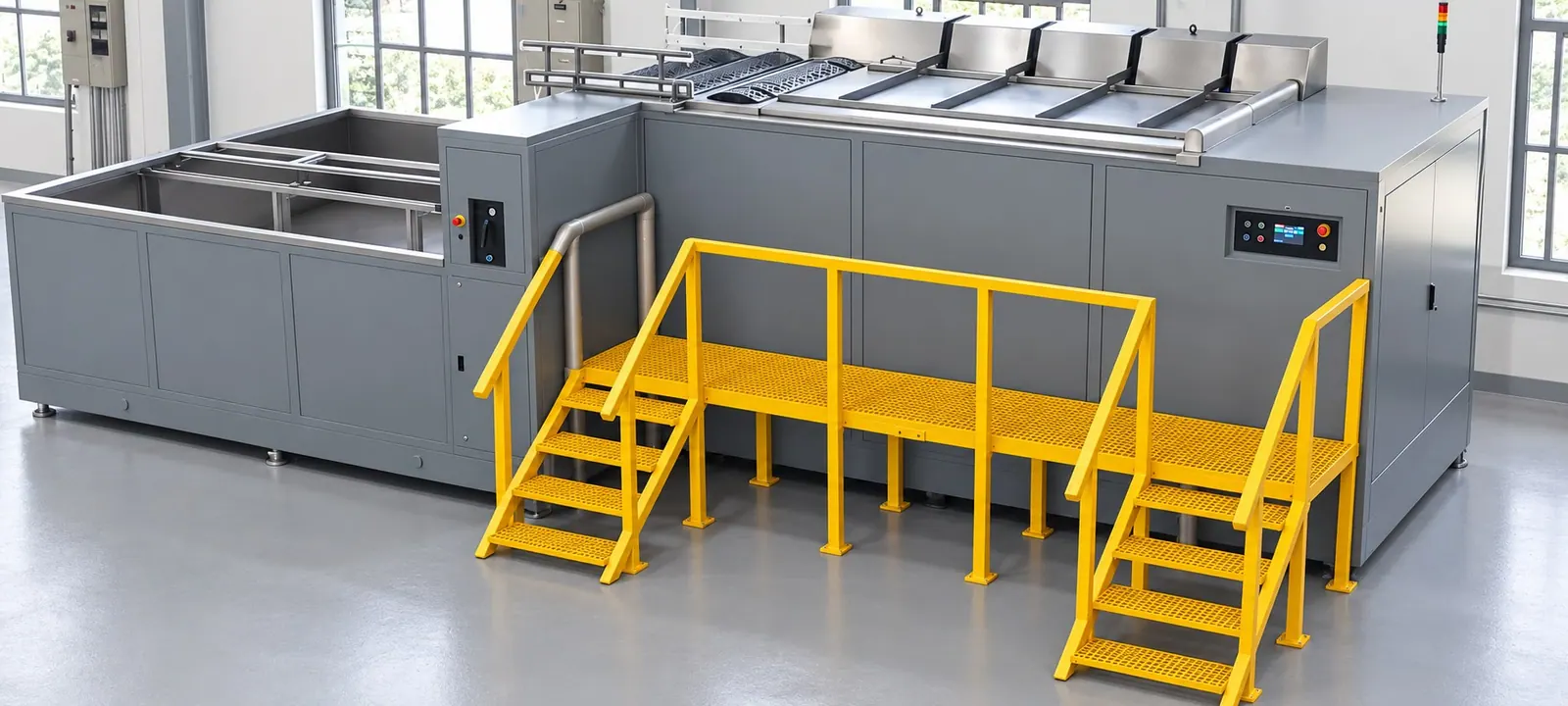

EVS 7000-PL · render from the pre-despatch photograph

Talk to an engineer Call 1300 647 664

The machines

The standard tanks, and the custom EVS

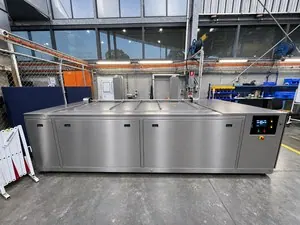

EVS 1500-PL

The plant-scale tank

18,000 W · 12 gens
2000 × 900 mm platform (optional)

Full specification →

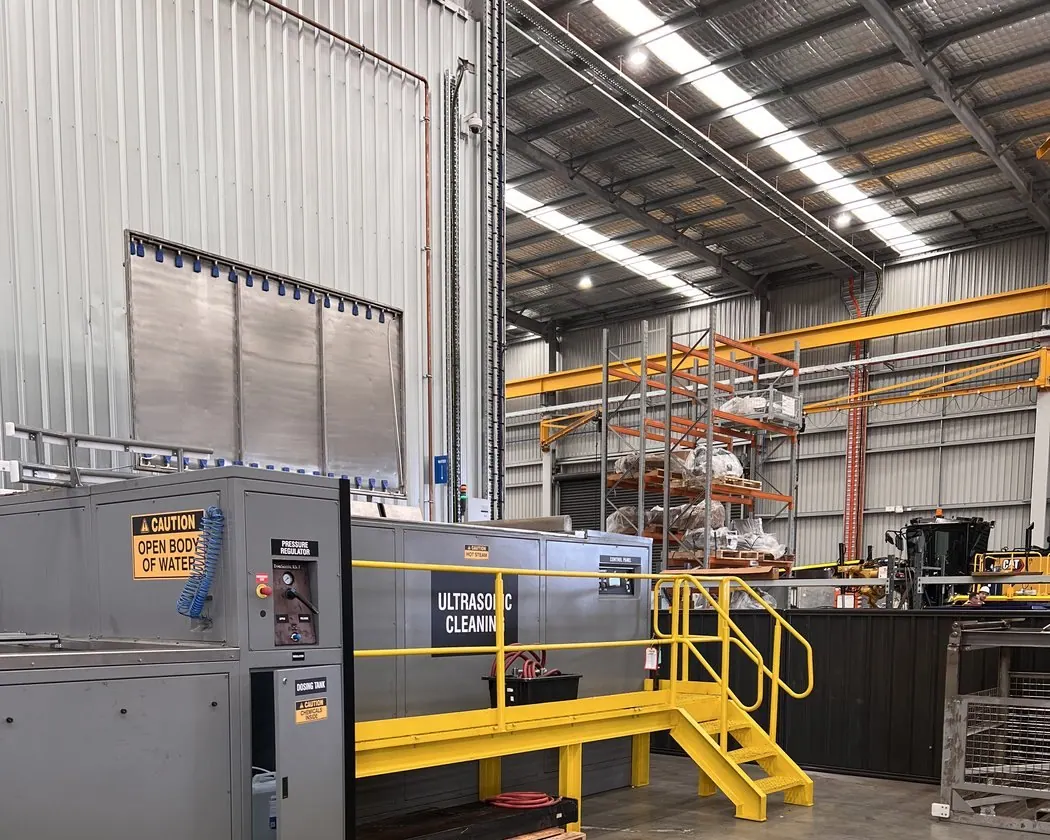

EVS 7000-PL

The largest standard tank

63,000 W · 42 gens
1,172 mm working depth

Full specification →

Build your own

Custom EVS

Engineered to your part

Enter part dimensions & weight
Pick lid, platform, filtration
Projected tank + power, instantly

Configure & request a quote →

High-intensity cleaning applications

Tank size follows the application

These are the jobs EvoSonic Heavy tanks are bought for. Each one links to the documented process: soils, chemistry, cycle and verification. Tell us your part and it gets worked the same way.

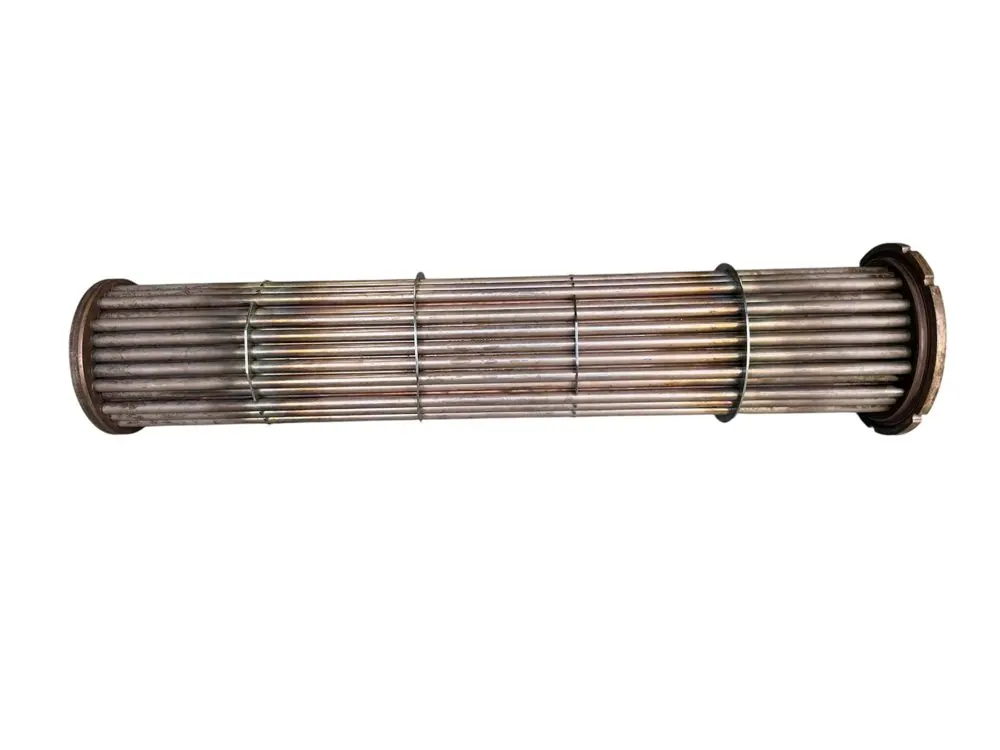

Heat-exchanger & bundle recovery

Whole-bundle immersion — shell-side scale and tube-side sludge out together, ΔT restored, no rodding scars. Sized to your longest bundle.

The exchanger process →

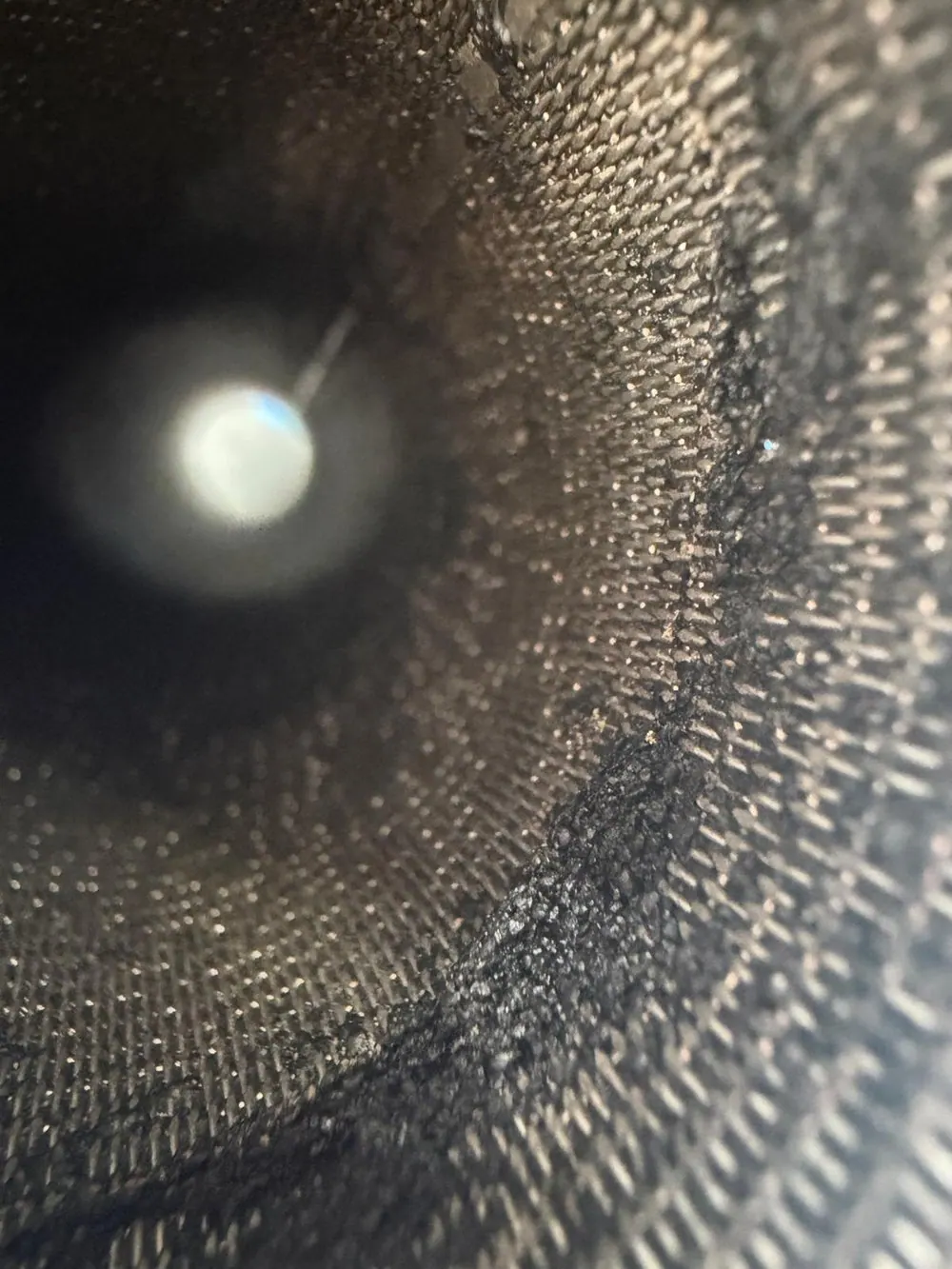

Power generation & process filters

Candle filters, demister pads and process elements recovered on rotation — ΔP logged per element, spares pool instead of purchase orders.

The recovery program →

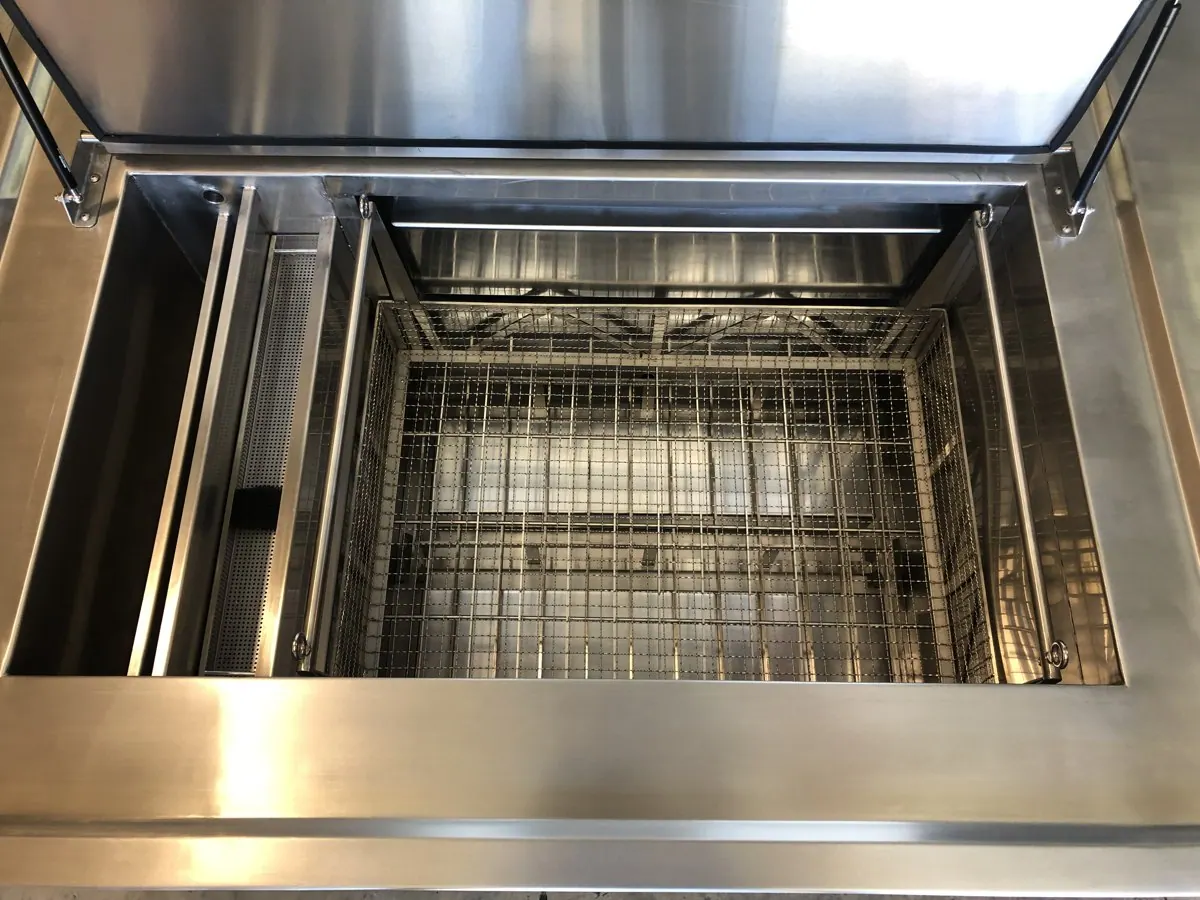

Mining & heavy plant

Final drives, cylinders, GET and undercarriage — wash-bay soils cleaned through the drillings, with the optional platform doing the lift.

The sector page →

Range at a glance

Will your part fit? The numbers that decide it

Shortlist by tank opening and working depth first. The part must go in, immerse fully and come out draining. Then check power against the soil. Every model name opens the full specification.

Model	Tank	Opening L × W	Working depth	Ultrasonics	Heating	Supply
EVS 1500-PL	1,550 L	2300 × 1125 mm	600 mm	18,000 W · 12 gen	28 kW	415 V 3-ph · 48 kW
EVS 7000-PL	4,433 L	2495 × 1516 mm	1,172 mm	63,000 W · 42 gen	70 kW	415 V 3-ph · 136 kW

Common to both: 25 kHz · stepless 10–100% · lifting platform optional · automated lid optional · filtration optional · weir bath defence · PLC/HMI logged recipes · 12-month warrantyFiltration: filtration and kidney-loop filtration available as optionsPart outside the table? Build your own EVS →Smaller parts? See EvoSonic →

Custom EVS

The tank is built to your part

If neither standard tank fits, we draw one that does, up to 10,000 litres. The tank is sized around your longest bundle or heaviest frame, your cycle time and your floor space. Envelope, frequency, power, platform, weir system and services are all specified to the job. Your parts go through our lab first, then to the drawing.

Build your own EVS — configurator Ask about a validation trial

Designed to the job

✓Tank envelope drawn around the part + basket + drain clearance

✓Frequency, power and generator count set by the soil

✓Platform, agitation and lid engineered to the load

✓Weir and oil management sized to the duty, filtration as an option

✓Services, access platforms and foundations checked on site

✓Delivered with chemistry, recipes and operator training

Option

The lifting platform

The lifting platform is an option on these tanks. With it fitted, both standard tanks load at deck height and the platform does the immersion, the agitation and the drain hold. The overhead crane stays free for the jobs only a crane can do.

Filmed on a customer production trial — an EVS 1500-PL surfacing 500 kg to drain. Silent; loads when you press play.

Features

Heavy industrial, engineered as a system

Elevator platform, optional

Deck-height loading by trolley or forklift, powered immersion and raise-to-drain. Without it, the load goes in by hoist or crane.

Rated for heavy contamination

25 kHz, stepless 10–100%. Generator arrays from 12 to 42, sized to the soil.

Bath defence and filtration

Displacement weir, oil capture and interceptor per model. Filtration and kidney-loop filtration are available as options. A kidney loop is a side-stream loop that filters the bath while the tank works.

Stainless tanks

SS316 tank construction. Plate thickness and insulation are listed on each model page.

PLC/HMI with logged recipes

One recipe per part family and every cycle logged.

Remote diagnostics

Our engineers can read the PLC, diagnose and adjust remotely.

Agitating platform option

The oscillation stage, motorised, for an even clean on dense, heavy baskets.

Engineered to site, quoted as a system

Services check, foundations where needed, chemistry, commissioning and operator training. One price, ex GST.

Custom builds

The same engineering builds larger and specialised tanks to your drawing. Start with the custom EVS configurator.

Smaller tanks

The EVS 180 to EVS 1200 are on EvoSonic.

Smaller tanks?

See EvoSonic

Floor tanks from 180 to 1,200 litres for engine parts, DPFs, radiators and fabrications. Lifting platform and automated lids optional.

See EvoSonic →

Where the range sits in the process

Ultrasonics and oscillation covered — rinse and dry quoted alongside

Every EvoSonic delivers the ultrasonics stage with the bath defended. The oscillation stage comes with the optional agitating platform. Matching rinse tanks and drying stages are quoted with the machine; fully sequenced lines are built as a SonoLine.

Where EvoSonic Heavy sits

Below it: EvoSonic. Beyond it: UltraMax HX and custom builds.

Large industrial ultrasonic cleanersEvery machine from 180 L up, by size How to chooseThe checks that matter before you buy EvoSonicEVS 180 to EVS 1200, the step below UltraMax HXHeat-exchanger tanks, 12,000 to 46,000 L Book a cleaning trialHeavy parts welcome. The lab documents the result See the case studiesEngine blocks, DPFs and exchangers, documented

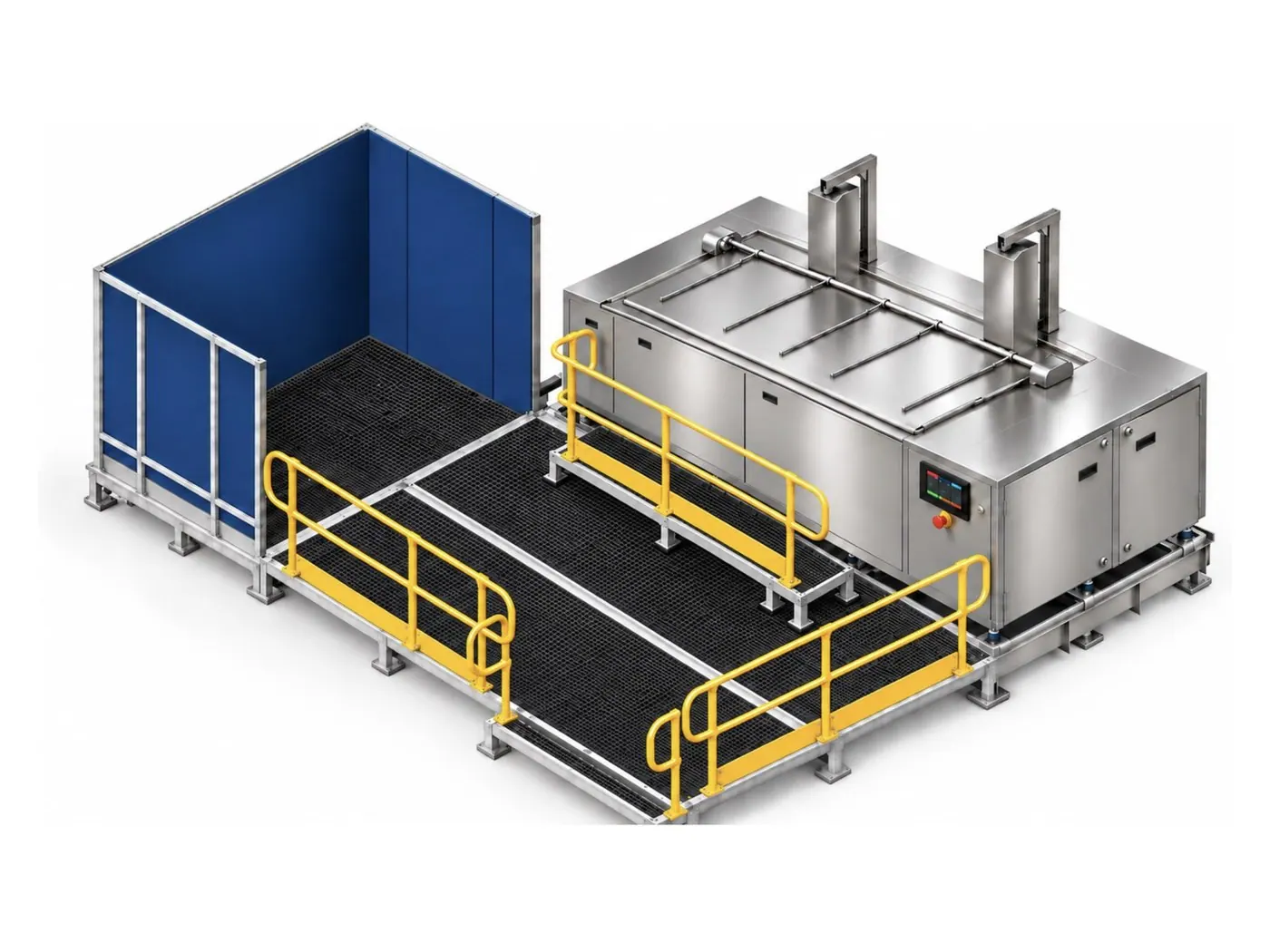

An ultrasonic cleaning machine standing in an integrated bund with a lift-out grated deck, handrails and a screened bay at the load end

Accessory

Integrated work areas

Bunding to catch what comes off the load, a raised grated deck so the work happens at working height, and a screened washbay for the wet work beside the bath.

Built into the machine from the start, or as a separate unit that drops in beside one already on the floor. Quoted as its own line, ex GST.

Bunding, raised platforms and washbays →

Planning a new workshop or plant around the tank? See engineered ultrasonic cleaning systems for new plants.

See also: How an industrial ultrasonic tank works — a cut-away of every part of the machine, and why the big tanks get rod resonators rather than base-plate transducers.
