MSX benchtop range · light industrial · 15 & 30 L

When the bench goes to work every day

Built tough and designed to meet the compliance demands of medical and dental reprocessing, brilliant in the laboratory and completely at home in the workshop — the MSX benchtops are the perfect all-rounder for people who value capability and quality. 1.5 mm SS316 tanks, stepless power with load sensing, recipes on an LCD touch panel — and in the MSX 30, dual-frequency cleaning that demolishes and finishes in one tank.

2models
15/30 Ltanks
25/45 kHzdual · MSX 30
10–100%power
SS3161.5 mm
24/7continuous duty
Compare the two

All prices ex GST.

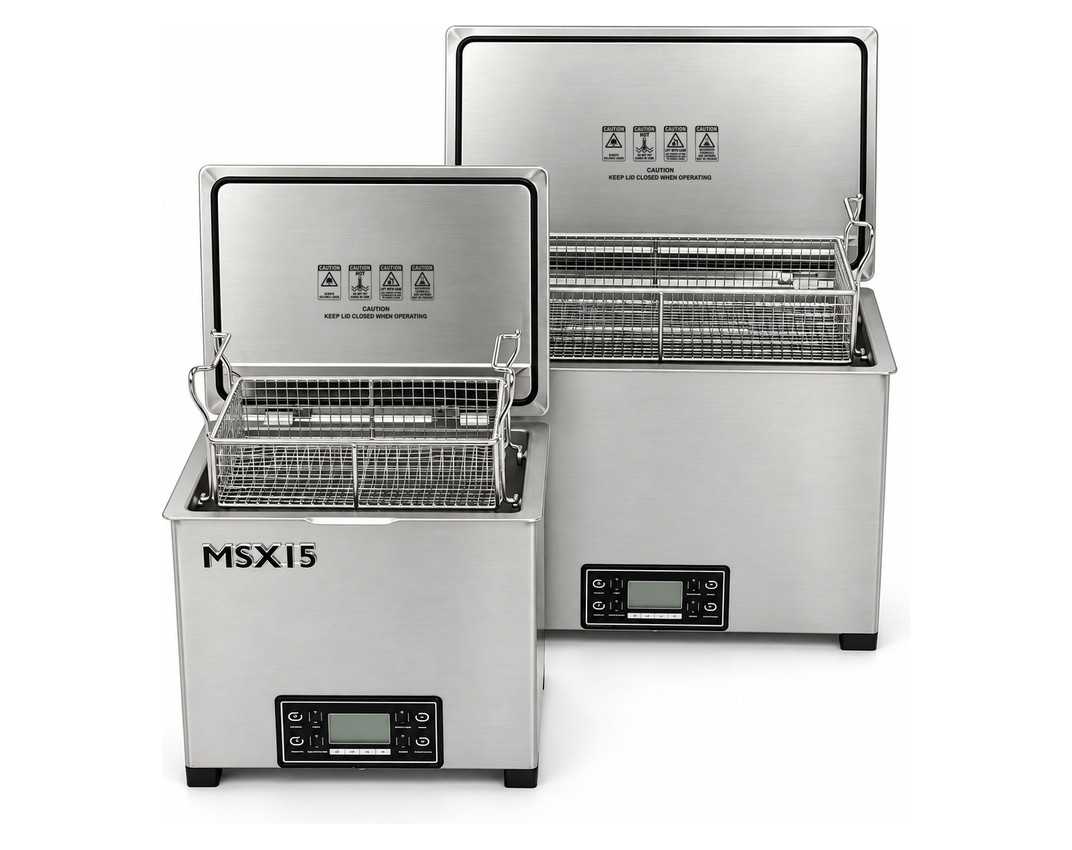

The Misonics MSX benchtop family — MSX 15 and MSX 30

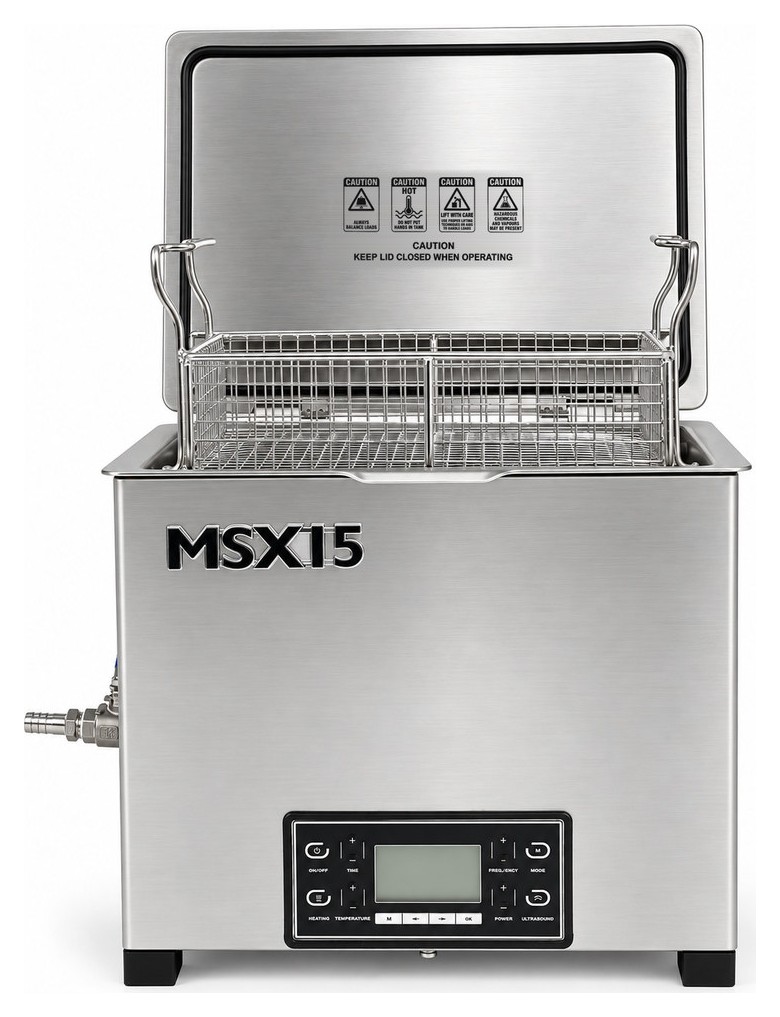

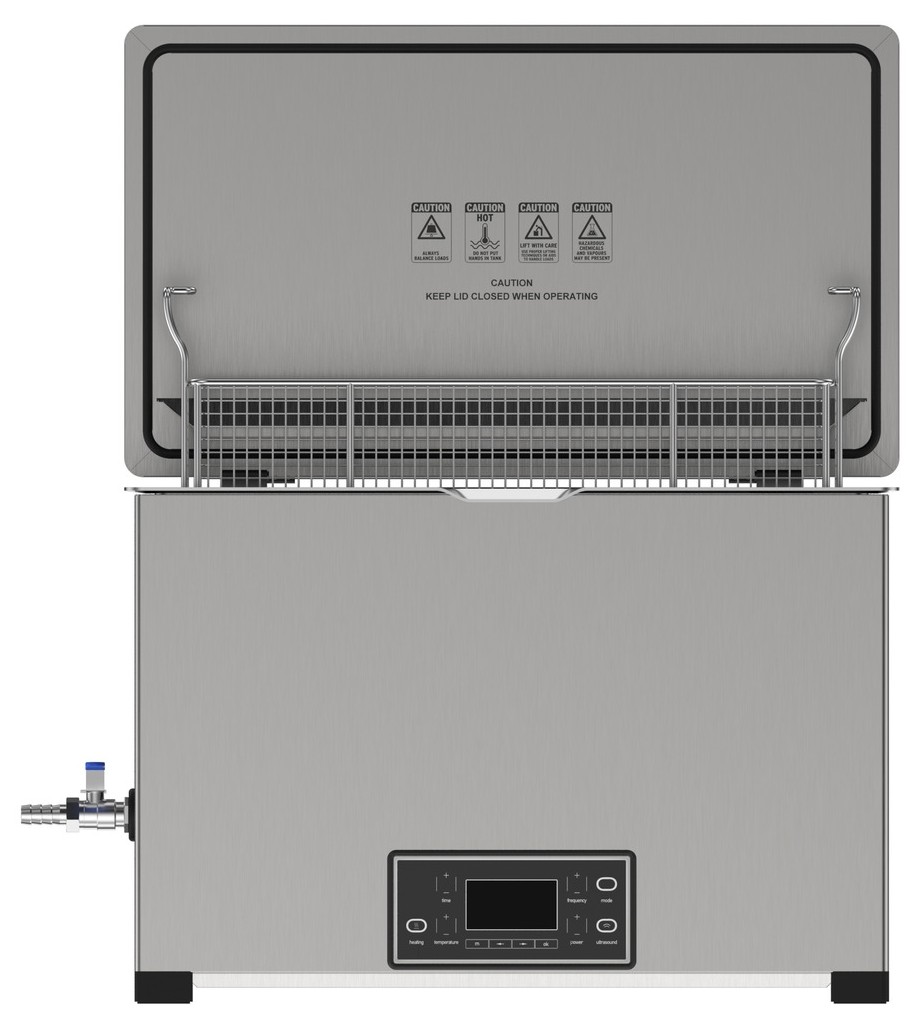

MSX 15  ·  MSX 30
Talk to an engineerCall 1300 647 664
The two machines

Same platform, one big decision: dual frequency

Side by side

Comparison

SpecificationMSX 15MSX 30
Tank volume (L)1530
Useful volume (L)9.416.2
Useful basket area L×W×D (mm)320×225×130490×235×140
Ultrasonic power (W)300650
Power density (W/L)2022
Ultrasonic frequency40 kHz25 / 45 kHz dual
Generators / resonators1 / 11 / 1
Max load (kg)812
Heating (kW)0.61.0
Tank materialSS316L — 1.5 mmSS316 — 1.5 mm
Overall unit L×W×H (mm)430 × 310 × 370690 × 380 × 415
Dry weight (kg)17.530
Max draw (W)9001650
Programmable cyclesYes — 3 stored recipesYes — 3 stored recipes
Everything else10–100% stepless power · load sensing · sweep · degas · ambient–80 °C with safety thermostat · LCD touch panel · torque-hinged lid with condensate deflector · basket drain lock · ½″ ball-valve drain · designed to AS/NZS 3100 · 12-month warranty

Both models: 240 V / 50 Hz single phase, 3 m IEC lead, standard 10 A socket. All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.

Why dual frequency matters

25 kHz demolishes. 45 kHz finishes. One tank does both.

The best benchtop in its class — a statement we are happy to defend, basket for basket.

Heavy carbon and grease want the big, aggressive bubbles of 25 kHz; fine passages, threads and finished surfaces want the denser, gentler field at 45 kHz. A single-frequency machine has that choice made for it at the factory. The MSX 30 carries both bands in one tank and the operator selects which one runs — 25 kHz for the heavy pass, 45 kHz for the finish — which is why it is the machine we put in front of rebuild shops, armouries and anyone whose basket holds more than one kind of problem. Read the dual-frequency guide →

25 kHzfewer, larger bubbles — each one collapsing harder45 kHzmany more, much smaller — a finer, denser fieldWHICH ONE, FOR WHATBulk carbon, scale, baked-on product25 kHzFine slots, mesh, small drillings45 kHzSteel and cast iron25 kHzAluminium, brass, plated and polished45 kHz
The same tank, the same watts, two completely different fields. Big bubbles do the demolition; small bubbles do the finishing.
Features — every MSX benchtop

The step up from benchtop to light industrial

Rated for continuous operation

A workhorse duty cycle — these machines run shift after shift, not bursts between cool-downs. Built tough, built to be used.

SS316 tank, 1.5 mm drawn

Marine-grade stainless at twice the usual benchtop gauge — built for industrial chemistry, clinical detergents and years of cavitation.

Stepless power, 10–100%

Not three steps — a dial. Set cavitation intensity exactly where the part and chemistry want it.

Load sensing

The generator reads the load and holds delivered power as baskets, temperature and solution change.

G4-series industrial generator — MSX 30

The MSX 30 is driven by the same advanced G4-series generator platform as our industrial machines — resonance tracking, dual-frequency drive, industrial reliability at bench scale.

Basket locks at drain position

Lift the basket, lock it above the bath — drag-out drains back into the tank instead of onto the floor. Less chemistry lost, less mess, faster unloading.

Torque-hinged lid with condensate deflector

The lid stays where you put it, and condensate runs back into the tank — not down the cabinet or onto the bench.

Sweep and degas

Even field across the basket, fast conditioning of fresh fills — standard.

LCD touch control · 3 stored recipes

Set time, temperature and power per part family once; operators run the recipe, not their memory.

½" ball-valve drain · 12-month warranty

A real drain for real bath changes, electrics designed to AS/NZS 3100 and tested and tagged before despatch, and spares held locally.

Fit for clinical reprocessing

Stainless construction, sealed controls and a parameterised, repeatable cycle — designed to slot into medical, dental and veterinary reprocessing workflows and the audits that come with them.

Applications

Built for trade duty — five application guides

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
Where the MSX benchtops sit in the process

The ultrasonic stage, bench-sized

Misonics cleaning process stages

An MSX benchtop runs the ultrasonics stage; rinse, protection and drying complete the card at bench scale. Because the platform is shared, the recipe you prove here transfers to the floor range — and to full multistage lines — without re-proving anything.

Who builds it

Designed, specified and supported by Misonics

Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
