MSX floor-standing range · medium industrial · 50–240 L

The workshop floor, properly equipped

Five floor-standing machines from 50 to 240 litres — insulated 3 mm SS316 tanks, industrial 25 kHz with load sensing, touchscreen recipes, and factory-fitted oil management on the big tanks. Built tough for engine rebuilders, filtration services, exchanger shops and every floor that cleans for a living.

5models
50–240 Ltanks
25 kHzindustrial
4,500 Wup to · 3 gens
SS3163 mm insulated
Compare the fiveRent from $140/week

All prices ex GST · machines quoted to site.

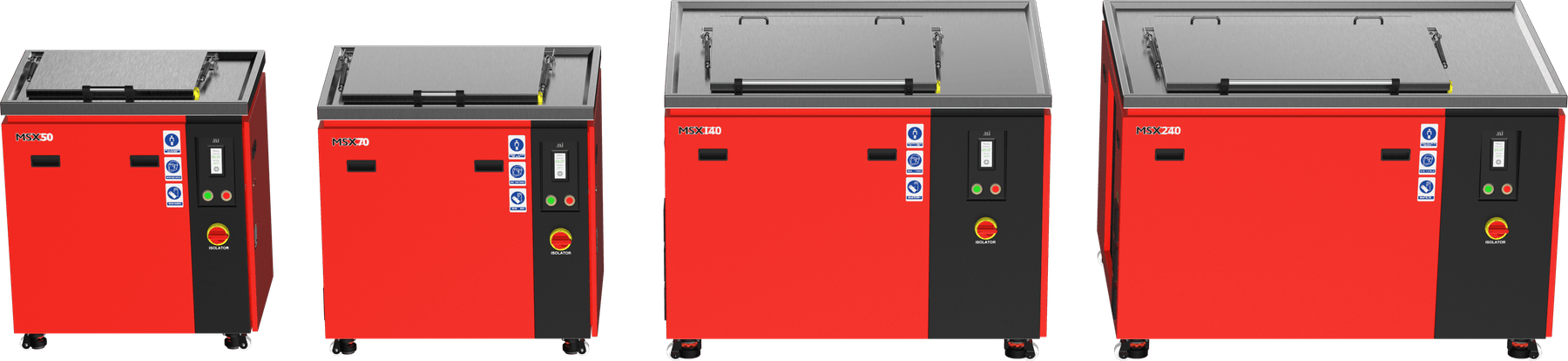

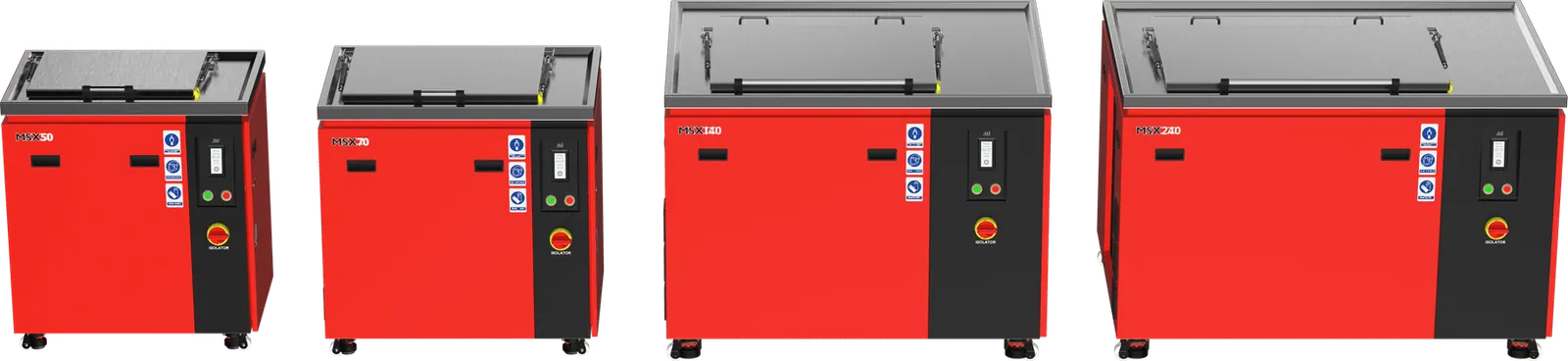

The Misonics MSX floor-standing range shown to scale — MSX 50, MSX 70, MSX 140 and MSX 240 industrial ultrasonic cleaners
MSX 50 · MSX 70 · MSX 140 · MSX 240 — shown to scale · the MSX 150 dual-tank completes the range
Talk to an engineerCall 1300 647 664
The five machines

Pick by basket and by bath defence

Two decisions choose the machine: the biggest part you clean weekly (basket), and how dirty the duty is (the 140 and 240 carry the full weir-and-filtration system for oily work).

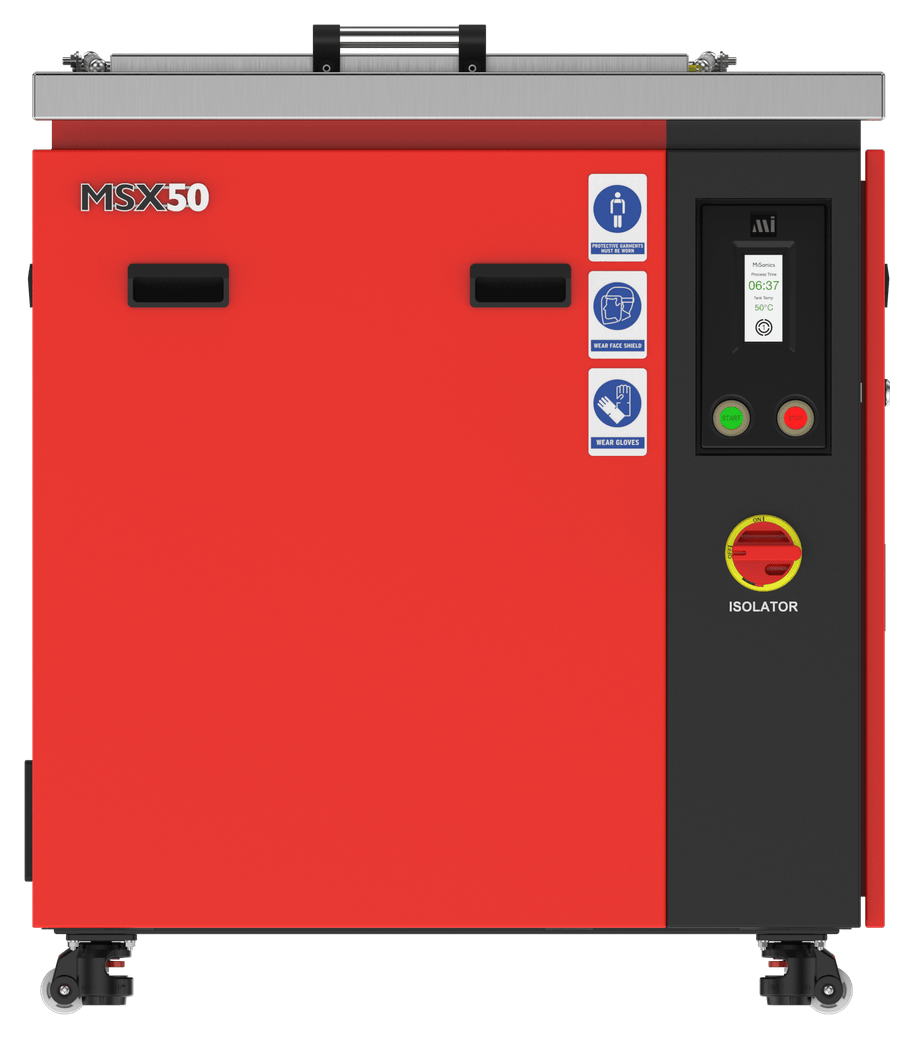

Misonics MSX 50

MSX 50

The floor-standing starter · rent $140/wk
  • 50 L · 1,500 W @ 25 kHz
  • 500×300 mm basket
  • Unit 890 × 710 × 1018 mm
  • Ball-valve drain · insulated tank
Full specification →

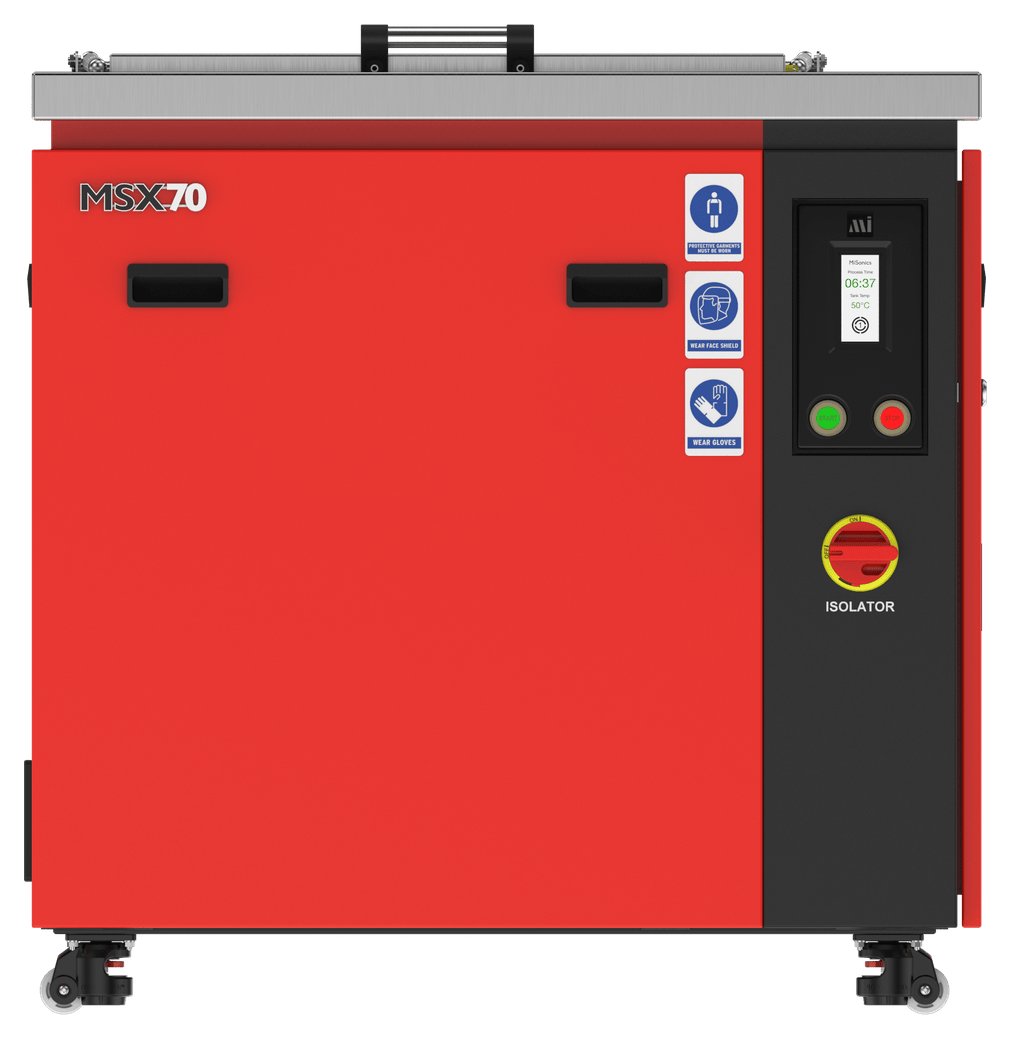

Misonics MSX 70

MSX 70

The deep-part tank · rent $175/wk
  • 70 L · 1,500 W @ 25 kHz
  • 600×400 mm basket
  • Unit 990 × 810 × 1018 mm
  • Ball-valve drain · insulated tank
Full specification →

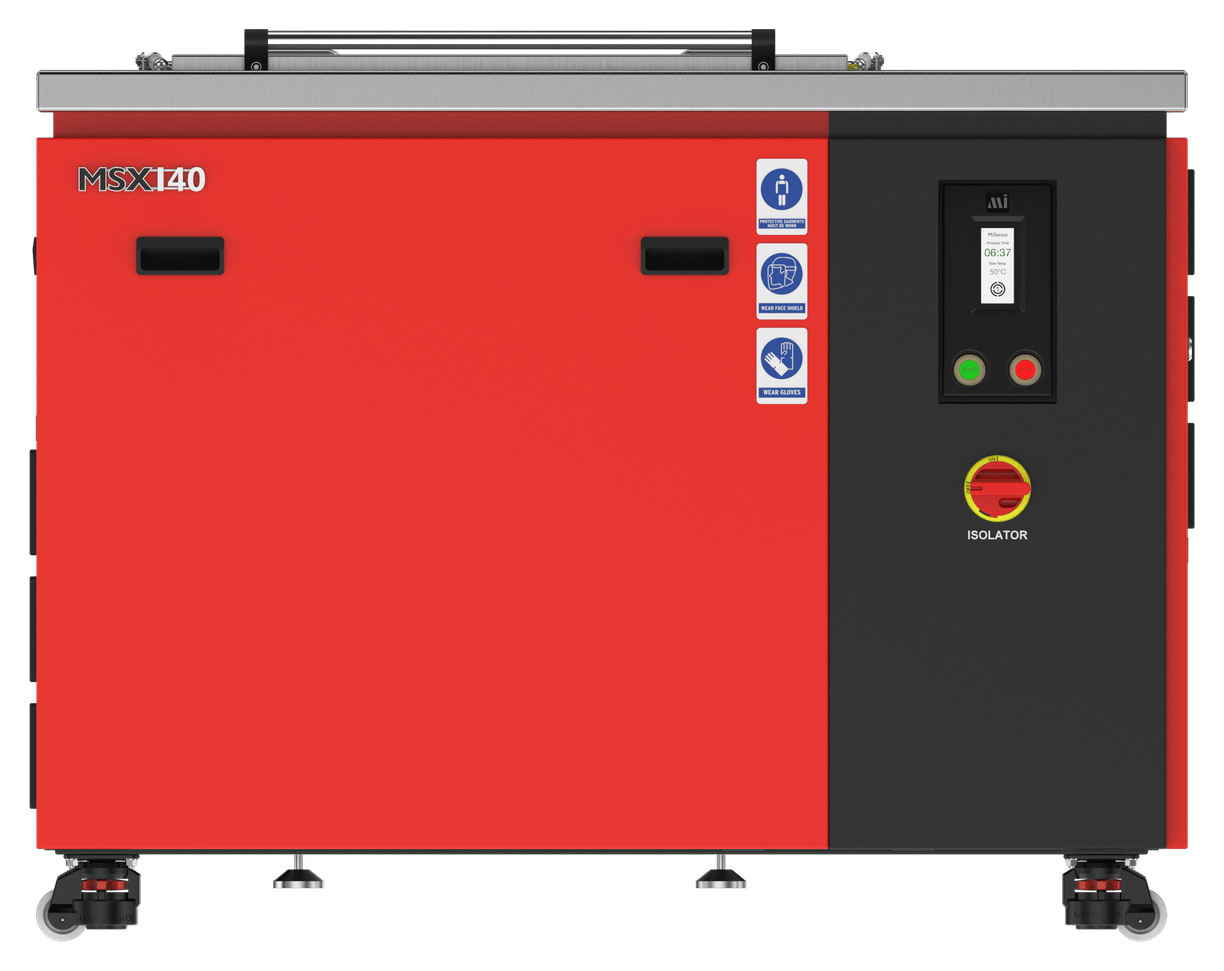

Misonics MSX 140

MSX 140

The oil-management machine · rent $266/wk
  • 140 L · 3,000 W @ 25 kHz
  • 700×500 mm basket
  • Unit 1362 × 1190 × 1080 mm
  • Weir · oil capture · filtration
Full specification →

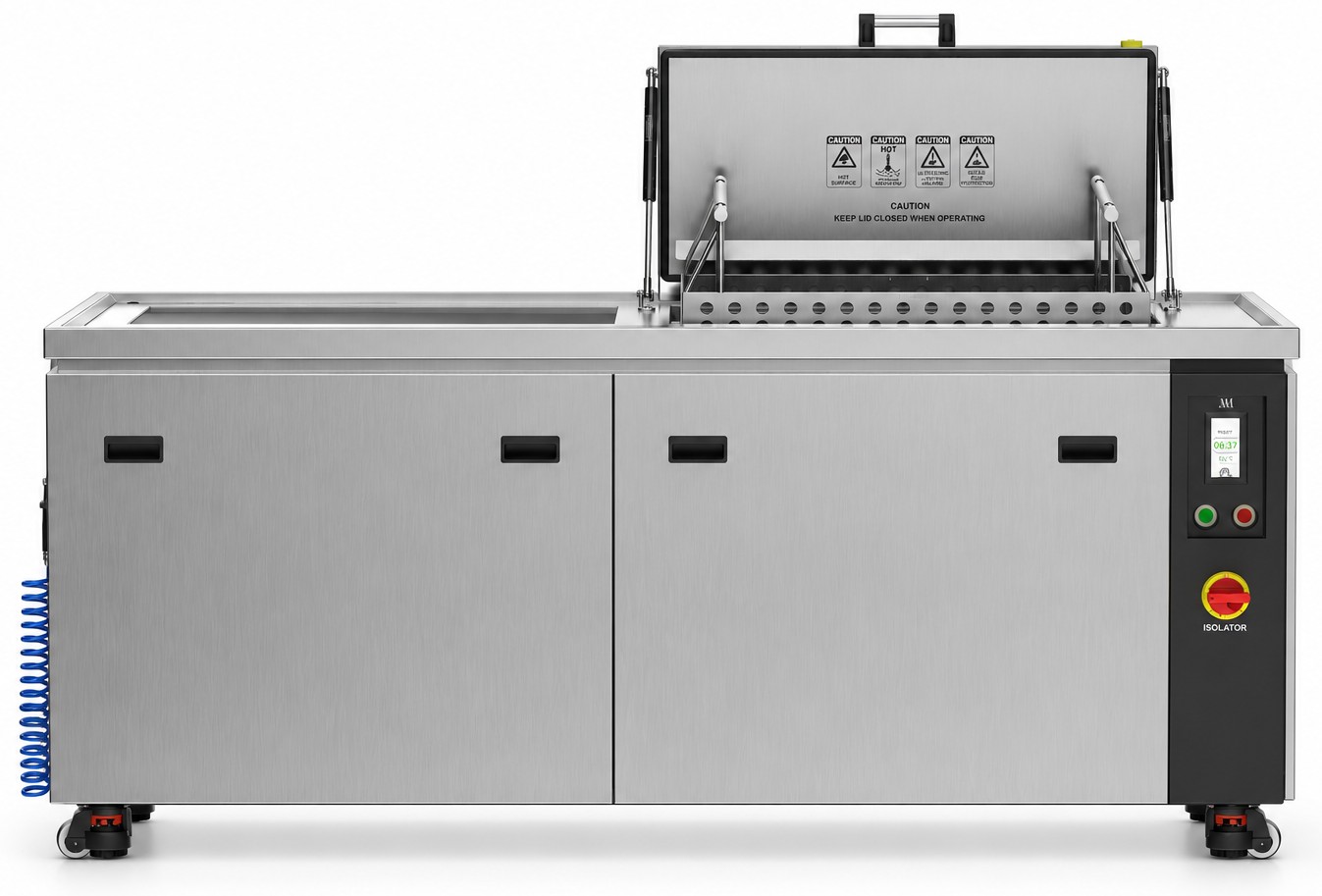

Misonics MSX 150

MSX 150

The dual-tank wash line · rent $197/wk
  • 2 × 150 L · 3,000 W @ 25 kHz
  • 850×340 mm basket
  • Unit 2273 × 849 × 1018 mm
  • Dual tank: wash + rinse
Full specification →

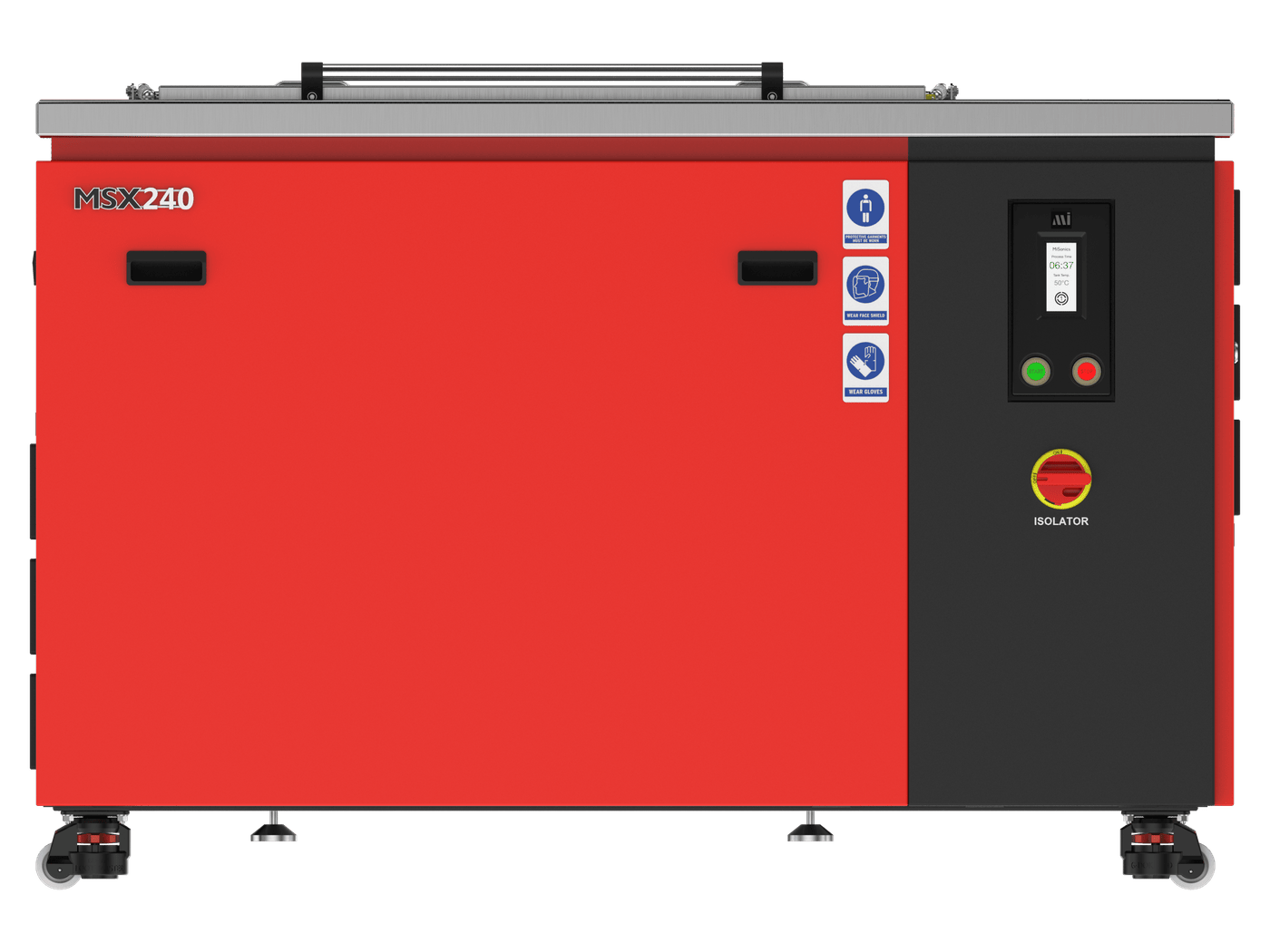

Misonics MSX 240

MSX 240

The heavy hauler · rent $337/wk
  • 240 L · 4,500 W @ 25 kHz
  • 900×500 mm basket
  • Unit 1578 × 1090 × 1080 mm
  • Weir · oil capture · filtration
Full specification →
Side by side

Comparison

SpecificationMSX 50MSX 70MSX 140MSX 150MSX 240
Tank volume (L)50701402 × 150
ultrasonic + rinse		240
Useful volume (L)457214086.7225
Useful basket area L×W×D (mm)500×300×300600×400×300700×500×400850×340×300900×500×500
Ultrasonic power (W)15001500300030004500
Power density (W/L)3021212019
Generators / resonators1 / 11 / 12 / 22 / 23 / 3
Heating (kW)2.42.442.44
Overall unit L×W×H (mm)890 × 710 × 1018990 × 810 × 10181362 × 1190 × 10802273 × 849 × 10181578 × 1090 × 1080
Max draw (W)39003900700054008500
Power supply240 V 1-ph240 V 1-ph415 V 3-ph240 V 1-ph415 V 3-ph
Oil management——Weir · oil capture · 150 µm basket · 50 µm filter—Weir · oil capture · 150 µm basket · 50 µm filter
Everything else25 kHz · 10–100% stepless · load sensing · sweep · degas · insulated 3 mm SS316 · touchscreen recipes · gas-strut lid · 1″ SS ball-valve drain · ambient–80 °C · designed to AS/NZS 3100 · 12-month warranty

Purchase prices on application — floor machines are quoted to site with power check, baskets, chemistry and commissioning in one number.

All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.

Features — every MSX floor machine

Industrial discipline, floor-standing scale

3 mm SS316 insulated tanks

Triple the benchtop gauge, fully insulated — heat stays in the bath, energy bills stay down, and the tank outlives the workload.

Industrial 25 kHz with stepless power

The demolition band for floor-scale soils, dialled 10–100% with load sensing holding delivered power steady all shift.

Multi-generator arrays

Up to three industrial generators (MSX 240) sharing the load — power that scales with tank size, redundancy that scales with duty.

Programmable touchscreen · 4 recipes

Named recipes per part family, level sensing and interlocks — operators press, supervisors own the parameters.

Oil management built in — 140 / 240

Displacement weir, oil capture, 150 µm triple-interceptor and filtration: the full bath-defence system from our oil-removal playbook, factory-fitted.

Dual-tank line — MSX 150

Ultrasonic wash plus heated rinse in one 2.3 m frame — the two-stage discipline as a single machine.

Gas-strut lids

Big lids that lift with one hand and stay put — heat and noise contained, loading unimpeded.

Rated for continuous operation

Shift work is the design brief. Built tough, built to be used.

Single-phase where it counts

MSX 50, 70 and 150 run from 240 V — floor-scale cleaning without a switchboard project. 140/240 run 415 V three-phase.

Designed to AS/NZS 3100 · 12-month warranty

Tested and tagged by a licensed electrician before despatch, local spares, and every machine delivered with chemistry matched and first recipes loaded.

The bath is an asset

On the big tanks, oil management is factory-fitted

A 240-litre bath of working chemistry is worth defending: the MSX 140 and 240 build in the displacement weir, oil capture, 150 µm triple-interceptor and filtration that our oil-management guide teaches — so bath life multiplies by design, not by discipline alone.

MSX FLOOR MACHINEsloped floor — solids collect where the drain isA weirB three-stage interceptoroil outC filter housingchanged on ΔPPUMPpick-upD clean solution, returned below the surface
The weir takes what floats, the interceptor stages the separation, and the filter takes what is carried — which is why day fourteen still cleans like day one.
Proof

The work these machines are bought for

Workshops & Trade

From carby banks to cylinder heads — the daily-duty floor machine.

Engine rebuilders

Blocks and heads stripped in one immersion — read the documented process.

DPF & filtration services

The two-bath ash process at floor scale — flow-tested per filter.

Radiators & exchangers

Whole-core immersion recovery — fins, tubes and headers together.

Where these machines sit in the process

Where the floor-standing tanks fit

Misonics cleaning process stages

Every MSX floor machine runs the ultrasonics stage; the 140 and 240 add built-in oil management to keep that stage working, and the MSX 150 adds the rinse stage in the same frame. Spray, drying and full automation build out from here — the multistage guide shows the architecture, and the UltraWash range and the SonoLine automated lines deliver it.

Looking for the MSX 500? The MSX 500 has been superseded. The work it was bought for is now done by the EvoSonic EVS 600, which is a genuinely industrial machine rather than a scaled-up workshop tank — heavier construction, an elevator platform for loading, and bath management designed for the contamination that comes with it. Where an existing MSX 500 footprint has to be matched exactly, the EVS platform is built to your dimensions. Older MSX 500 units still in the market are the previous generation.
Where the floor range sits

Below it: the MSX benchtops. Above it: EvoSonic heavy industrial and engineered lines.

MSX benchtop range15 & 30 L — the dual-frequency bench from $3,900Rent a floor machine$140–$337/weekTalk to technical salesAdvice on the parts and the soil before anything is freighted
Who builds it

Designed, specified and supported by Misonics

Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
