Misonics EVS 800 Heavy Industrial Ultrasonic Cleaner

The long-part single chamber · heavy industrial

800 LSS304 tank
15,000 W10 generators · 25 kHz
1500×560basket mm
700 mmworking depth
36 kWconnected
Talk to an engineerCall 1300 647 664

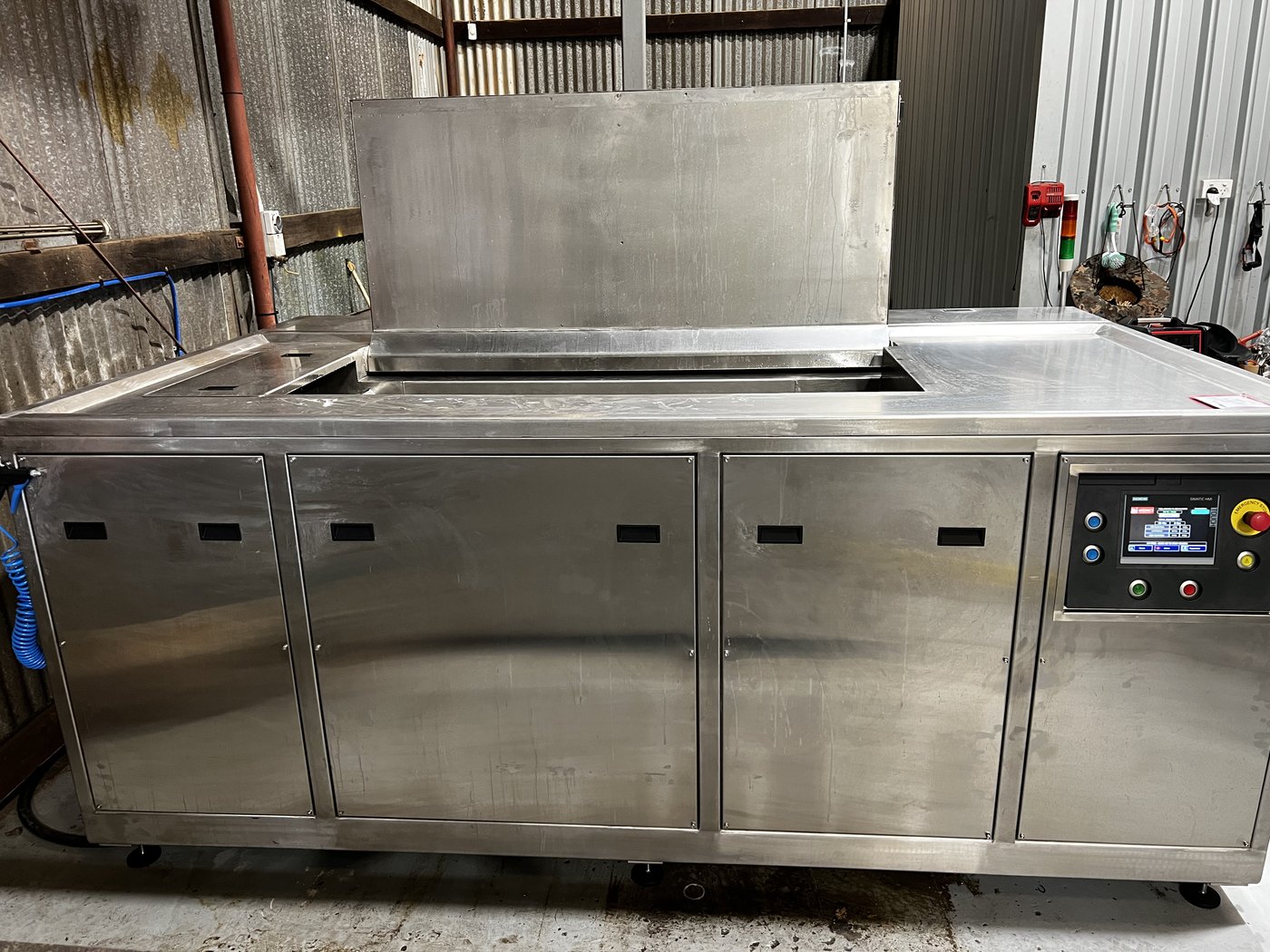

Misonics EVS 800 heavy industrial ultrasonic cleaner — stainless single chamber with pneumatic lid

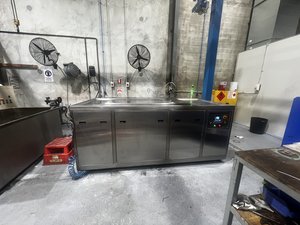

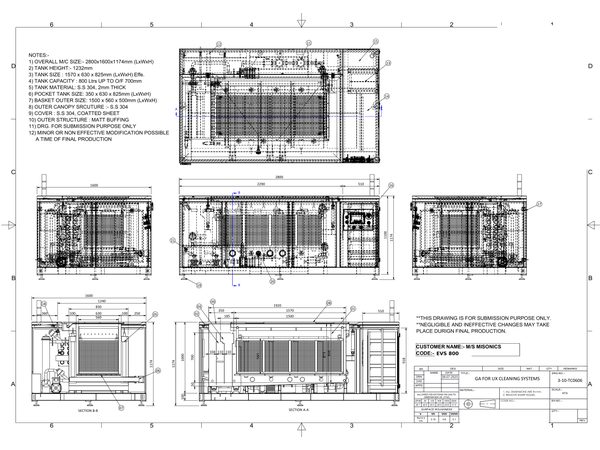

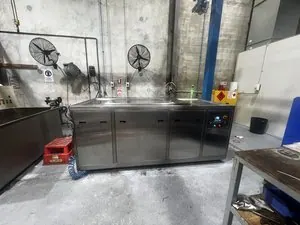

Photographed in service on a mining maintenance site. The general arrangement shows the standard machine — a dimensioned GA for your build is issued with the proposal.

The long-part single chamber
Engineered to site — POA

Quoted as a working system: machine, services check, chemistry, baskets, commissioning and first recipes — one number, ex GST.

Every EVS 800 ships with
  • ✓ Pneumatic auto lid · basket resting frame
  • ✓ Weir bath defence per model
  • ✓ PLC/HMI · programmable logged cycles
  • ✓ Remote diagnostics gateway
  • ✓ Insulated SS304 tank · manual spray gun station
  • ✓ 12-month warranty · site commissioning
415 V 3-phase · 21 kW heating · ~36 kW connected
Specification

Full specification — EVS 800

CAPACITY & DIMENSIONS
Tank Volume Capacity800 L
Tank – Length1570 mm
Tank – Width630 mm
Tank – Working Depth700 mm
Basket (L×W×H)1500 × 560 × 500 mm
Weir pocket tank350 × 630 mm
Overall Unit – Length2800 mm
Overall Unit – Width1600 mm
Overall Unit – Height1174 mm (tank 1232 mm)
Tank MaterialConfirmed at quotation
ULTRASONIC SYSTEM
Ultrasonic Power15,000 W peak (10 × 750/1500 W)
Ultrasonic Power Density19 W/L
Ultrasonic Frequency25 kHz
Multi-FrequencyNo
Number of Generators10
Resonator TypeTube Resonator, side-mounted × 10
Power Adjustable10–100%
Load SensingYes
Degas FunctionYes
Sweep FunctionYes
HEATING SYSTEM
Heating Power21 kW
Heating Element TypeCartridge
Heating Voltage415V AC 3-Ph
Temperature RangeAmbient–80 °C
Safety ThermostatYes
Insulated TankYes
FILTRATION & OIL MANAGEMENT
Displacement WeirYes
Triple Interceptor Weir150µm Basket
Oil Capture & RemovalYes
Auto-FillNo
FiltrationSingle-line cartridge, Grundfos pump
Filter Stage 250 µm
Main Tank Drain2" SS Ball Valve
Weir Drain2" SS Ball Valve
Oil Drain1" Ball Valve
CONTROL & SAFETY
Control Panel TypeIDEC HMI / PLC
Programmable CyclesYes
Stored Recipes4
Level Sensors2
Power InterlockOptional
Non-Drip EdgeYes
Lid TypePneumatic auto open/close
Weir LidAutomated
Remote AccessYes
ELECTRICAL & POWER
Power Supply415V / 50Hz / 3-Phase
Wiring Requirements3P+E+N
Power Cable Provided5-core flexible cable c/w 32 A 5-pin plug
Socket Requirement415 V 32 A 5-pin socket
POWER DRAW
Max Power Consumption36000 W
COMPLIANCE & WARRANTY
Machine Warranty12 months
Printed ManualYes
Online ManualYes
Electrical Design StandardAS/NZS 3100

All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.

Why this machine

Sized and built for heavy contamination

The 800 is built around its tank: a 1500 × 560 mm basket over 700 mm of working depth, sized for shafts, rails, long housings and the awkward loads that monopolise cranes. Ten generators deliver 15,000 watts peak of 25 kHz at 19 W/L, with autotune holding every channel on resonance.

The pneumatic lid is automated, control is IDEC HMI/PLC, and the machine draws 36 kW connected at 415 V three-phase. No elevator platform, no moving deck — the crane does the lift, the machine does the clean, and the price stays sharp.

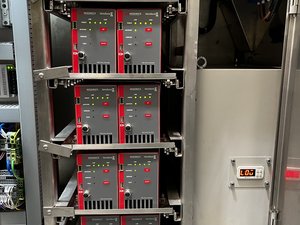

Misonics VarioSonic X sonic generators, autotune running
Our own electronics

Misonics VarioSonic X generators drive the tank

Ten side-mounted tube resonators, each on its own Misonics VarioSonic X generator with autotune — the module finds and holds the resonant point as bath load and temperature change, so the power you set is the power the parts receive.

Loading is simple and robust: the pneumatic lid opens hands-free, the 1500 × 560 mm basket sits on its resting frame in the tank, and a manual spray gun station handles rinse-off at the machine.

No elevator platform on this model — the 800 keeps it simple, and the price shows it.

Case studies →  ·  Mining & heavy plant →  ·  Industries →

Applications

What the 800 is bought for

Engine & driveline rebuilders

Blocks, heads and housings at truck scale — the documented one-immersion strip.

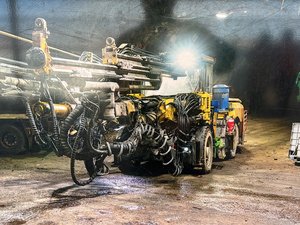

Mining & heavy plant

Final drives, cylinders, undercarriage and GET — wash-bay soils at wash-bay scale.

Heat exchangers & cores

Whole-core immersion for bundles and radiators — see the case study.

Energy & power generation

Turbine hardware, filters and exchangers — the sector page covers the duty.

Machine attributes

The attribute set, from the Misonics library

Pneumatic auto lid — hands-freePneumatic auto lid — hands-free
Stepless power 10–100%Stepless power 10–100%
SweepSweep
DegasDegas
Heating to 80 °CHeating to 80 °C
Level sensingLevel sensing
Displacement weir + oil captureDisplacement weir + oil capture
Ball-valve drainsBall-valve drains
PLC touchscreen recipesPLC touchscreen recipes
Interlocks & alarmsInterlocks & alarms
Service access + remote diagnosticsService access + remote diagnostics
Programmed cyclesProgrammed cycles

What it does

Why it matters

Drawn from the Misonics machine specification and general arrangement.

Where the EVS 800 sits in the process

Ultrasonics and oscillation covered — the next stages are rinse and dry

Misonics cleaning process stages

The EVS 800 delivers the ultrasonics and oscillation stages. We quote the matching rinse tank and drying stage alongside the machine — see the multistage guide.

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
General degrease

FX Degreaser

The daily bath for oils, grease and workshop soils — 5% in water, works from warm.

Product, SDS & TDS →Ferrous carbon & paint

MetalTek 100

Grease, rust, scale, carbon and paint off steel and cast iron in one bath — the chemistry the heavy-wall SS304 tank was built to hold. pH 14, so ferrous only.

Product, SDS & TDS →Precision & approvals

AquaVantage 815 GD

Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.

Product, SDS & TDS →
Questions

Before you specify

What does 'heavy industrial' actually buy over the MSX floor range?
Scale and system engineering: multi-generator arrays, PLC/HMI control with logged programmable cycles, remote diagnostics, powered handling on the platform-lift models, and factory oil management sized for genuinely dirty duty. An EvoSonic is a small plant, not a bigger tank.
How is the EVS 800 loaded, without an elevator platform?
By hoist or crane straight onto the basket resting frame — the pneumatic lid opens hands-free, the 1500 × 560 mm basket sits in the tank, and raise-to-drain is done on the hoist. It keeps the machine simple, compact and priced well under the platform-lift models; if your duty needs powered immersion, the EVS 1500-PL is the step up.
How does the oil management work?
Continuously: the displacement weir takes the surface film, oil capture removes it from circulation, the interceptor catches solids, and stainless filtration polishes the bath — so the solution keeps working for weeks, not days.
What is the remote access for?
An industrial remote-access gateway lets our engineers read the PLC, diagnose faults and adjust parameters over the air — most support calls end without a site visit.
What power and services do these need?
415 V three-phase throughout; connected load runs from ~12 kW at the small end to 136 kW on the EVS 7000. Every quote includes a site-services check before anything ships.
Can they be customised?
Yes — the seven standard sizes cover most duties, and the same engineering delivers custom tanks, platforms and integration when they do not. The TM-series custom builds in our archive are this capability at work.
How do we prove it before committing?
Laboratory trial on your parts first; for production-scale proof we arrange staged commissioning with acceptance testing on your parts. No EvoSonic is bought off a brochure.
What comes with them?
Lid, filtration and weir plumbing per model (elevator platform on the -PL models), PLC/HMI with recipes, level sensing, site commissioning with chemistry matched and first recipes loaded — 12-month warranty.
Specify & price

Specify and price your EVS 800

POA is not a brush-off. Tell us the duty and the options, and what comes back is a real number on a real proposal — machine, options, delivery and commissioning to your site.

1 · The options
Configure the machine

Each choice becomes a priced line. Not sure? Pick “advise me” and we size it from your duty.

2 · The duty
What are we cleaning?

This is what makes the price real — the deposit and the throughput decide chemistry, cycle and filtration.

3 · You
Where the proposal goes
Misonics EVS 800

800 L · 15,000 W peak at 25 kHz · 1570 × 630 mm tank, 700 mm working depth · pneumatic auto lid · 21 kW heating · weir + cartridge filtration · IDEC HMI

What comes back

  • A priced proposal on paper — the machine plus every option you picked, each as its own line
  • The general arrangement drawing for your configuration
  • Delivered and commissioned to your site — services check, freight and installation in the number
  • Lead time in writing
  • A cleaning trial on your parts before you commit, if you tick it

Need powered immersion?

The 800 loads by hoist onto its basket frame — simple and priced accordingly. If your duty needs an elevator platform, step up to the EVS 1500-PL, or build your own EVS.

Specify it as a system

Machine, chemistry, process card and commissioning

Specify & price itServices check and one number back, ex GSTBook a cleaning trialYour worst parts, our lab, the documented cardThe oil-management guideWhy bath defence is factory-fitted

Items marked “confirmed at quotation” are set out in the engineering pack supplied with your quotation.

Who builds it

Designed, specified and supported by Misonics

Australian-owned and engineered. Built locally and internationally to Misonics drawings, specifications and testing requirements, then supported from Melbourne with parts, service and the people who wrote the process. Sold direct and through our distribution partners.
