Misonics MSX 240 — 240 L Industrial Ultrasonic Cleaner

The heavy hauler · medium industrial

240 LSS316 3 mm tank
4,500 W3 generators

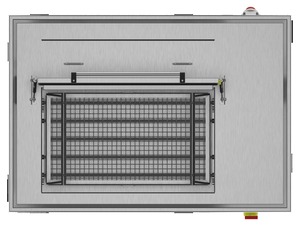

900×500basket mm
Weir+ oil capture
Talk to an engineerCall 1300 647 664

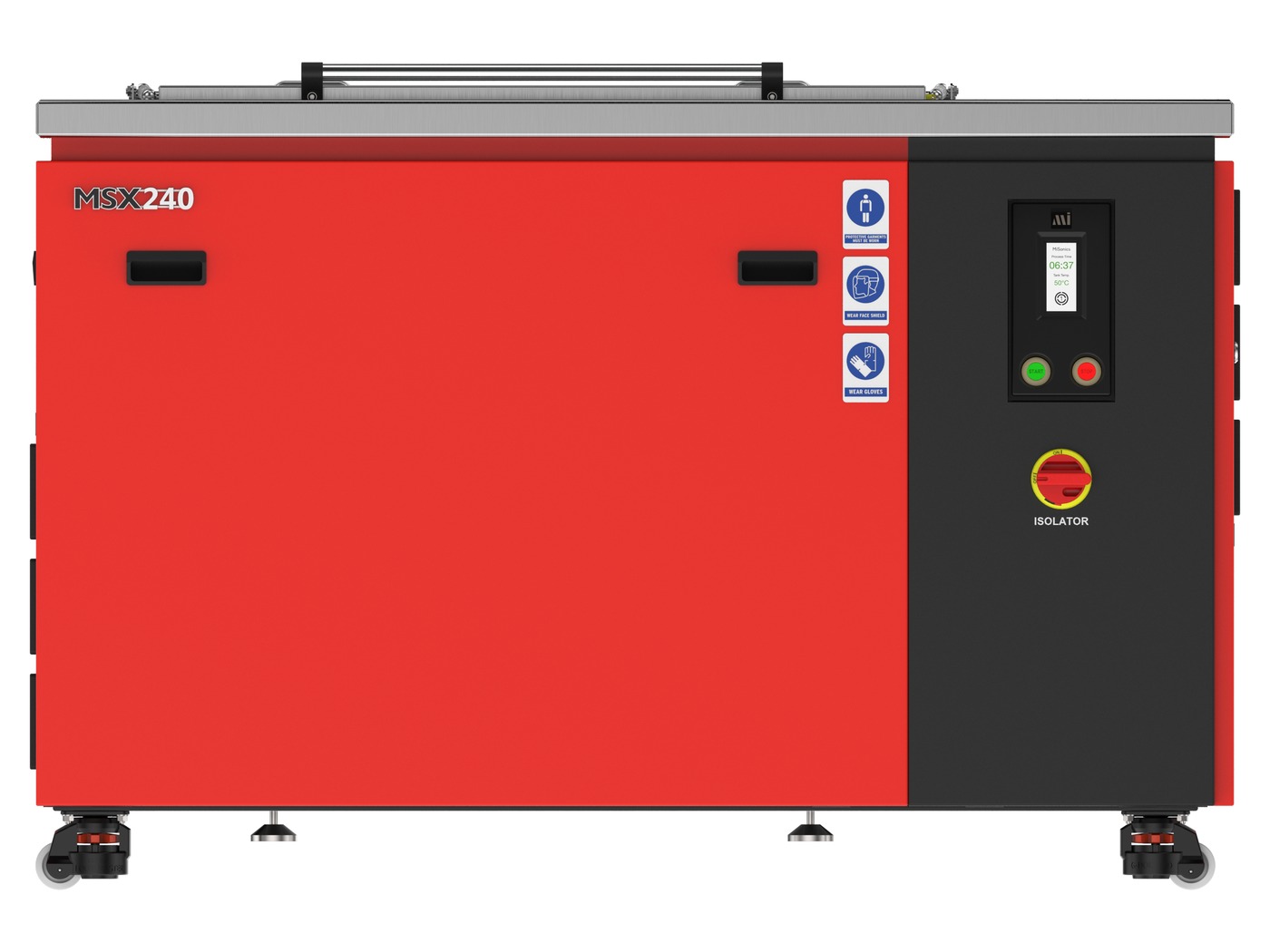

Misonics MSX 240 industrial ultrasonic cleaner — Front elevationClick to enlarge

Front elevation

Product renders from the MSX 240 CAD model.

The heavy hauler
Price on application

Floor machines are quoted to site — power, chemistry, baskets and commissioning included in one number. Same-day response.

Or rent — $337/week
Every MSX 240 ships with

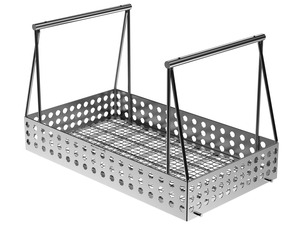

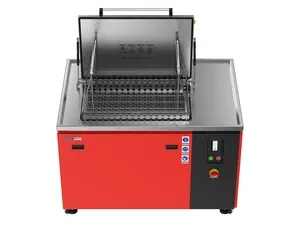

  • ✓ Stainless basket (900×500 mm)

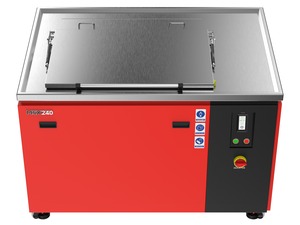

  • ✓ Gas-strut lid
  • ✓ Programmable touchscreen · stored recipes
  • ✓ Level sensing · insulated 3 mm SS316 tank
  • ✓ Commissioning chemistry & first recipes
  • ✓ 12-month warranty

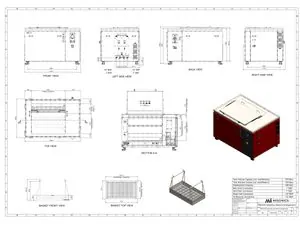

Download the MSX 240 specification (PDF)Download the general arrangement drawing (PDF, rev C)
Delivered and commissioned Australia-wide · spares held locally
Specification

Full specification — MSX 240

CAPACITY & DIMENSIONS
Tank Volume Capacity240 L
Total Solution Volume (incl weir)353 L
Useful Volume225 L
Useful Measurement (LxWxD)900×500×500 mm
Tank – Length950 mm
Tank – Width570 mm
Tank – Internal Depth720 mm
Tank – Working Depth500 mm
Weir – Length950 mm
Weir – Width270 mm
Basket – Length900 mm
Basket – Width500 mm
Overall Unit – Length1578 mm
Overall Unit – Width1090 mm
Overall Unit – Height1080 mm
Tank MaterialSS316 – 3mm
ULTRASONIC SYSTEM
Ultrasonic Power4500 W
Ultrasonic Power Density19 W/L
Ultrasonic Frequency25 kHz
Multi-FrequencyNo
Number of Generators3
Number of Resonators3
Power Adjustable10–100%
Load SensingYes
Degas FunctionYes
Sweep FunctionYes
HEATING SYSTEM
Heating Power4 kW
Heating Element TypeCeramic Bobbin
Heating Voltage415V AC 3-Ph
Temperature RangeAmbient–80 °C
Safety ThermostatYes
Insulated TankYes
FILTRATION & OIL MANAGEMENT
Displacement WeirYes
Triple Interceptor Weir150µm Basket
Oil Capture & RemovalYes
Auto-FillNo
Filter Sizeø63×253mm
Filter Stage 250 µm
Main Tank Drain1" SS Ball Valve
Weir Drain1" SS Ball Valve
Oil Drain3/4" Ball Valve
CONTROL & SAFETY
Control Panel TypeProgrammable Touchscreen Controller
Programmable CyclesYes
Stored Recipes3
Level Sensors2
Power InterlockOptional
Non-Drip EdgeYes
Lid TypeGas Strut – Manual
Weir LidYes – SS316L
Remote AccessNo
ELECTRICAL & POWER
Power Supply415V / 50Hz / 3-Phase
Wiring Requirements3P+E+N
Power Cable Provided5-core flexible cable c/w 32 A 5-pin plug
Socket Requirement415 V 32 A 5-pin socket
POWER DRAW
Max Power Consumption8500 W
COMPLIANCE & WARRANTY
Machine Warranty12 months
Printed ManualYes
Online ManualYes
Electrical Design StandardAS/NZS 3100

Tank volume is the whole tank, including the pockets that carry the resonators, heaters and platform. Useful volume is the working volume your parts sit in. All specifications — incl. dimensions, ultrasonic power and volume — are confirmed at quotation.

Why this machine

The heavy hauler

The biggest single tank in the MSX line: 240 litres under a 900 × 500 mm basket, driven by three generators totalling 4,500 watts of industrial 25 kHz. It carries the full oil-management fit-out — displacement weir, oil capture, 150 µm triple-interceptor, filtration — because at this scale the bath is an asset worth defending. Truck engine blocks, large housings, batch trays of heavy parts: this is the machine the rebuild floor plans around.

Applications

What runs through a 240

Workshops & Trade

From carby banks to cylinder heads — the daily-duty floor machine.

Engine rebuilders

Blocks and heads stripped in one immersion — read the documented process.

DPF & filtration services

The two-bath ash process at floor scale — flow-tested per filter.

Radiators & exchangers

Whole-core immersion recovery — fins, tubes and headers together.

Chemistry

Approved chemistry

Chemistry rule: these tanks are approved for the declared chemistry at the declared concentration and temperature. Acid chemistry needs an acid-duty specification. Hydrofluoric acid, hydrochloric acid and pickling solutions are not permitted in the tank; acid processes are only possible by indirect cleaning in a chemically inert secondary container, and only with written Misonics approval.
General degrease

FX Degreaser

The daily bath for oils, grease and workshop soils — 5% in water, works from warm.

Product, SDS & TDS →Ferrous carbon & paint

MetalTek 100

Grease, rust, scale, carbon and paint off steel and cast iron in one bath — the chemistry the 1.5 mm SS316 tank was built to hold. pH 14, so ferrous only.

Product, SDS & TDS →Precision & approvals

AquaVantage 815 GD

Aerospace-approved aqueous for new-manufacture and precision work; 815 QR-NF for MRO carbon.

Product, SDS & TDS →
Questions

Before you specify

Why 25 kHz on the floor machines?
Floor-scale parts carry floor-scale soils — baked carbon, heavy grease, scale. 25 kHz produces the large, aggressive cavitation that demolishes them, and stepless 10–100% power dials it back for finer loads. For genuinely delicate work alongside heavy work, pair with an MSX benchtop or ask about frequency options.
What does the weir system actually do (140/240)?
It is the bath-defence system: the displacement weir skims oil off the surface continuously, the 150 µm triple-interceptor basket catches solids, oil capture takes the skimmed layer out of circulation, and filtration polishes the bath. The result is written up in our oil-management guide — bath life multiplies and results stop drifting.
Single phase or three phase?
MSX 50, 70 and 150 run from 240 V single phase. The 140 and 240 need 415 V three-phase for their heating and generator load. Check the wall before you order — we confirm site requirements on every quote.
Are the tanks insulated?
Yes — all floor models carry insulated 3 mm SS316 tanks. Heat-up energy stays in the bath, the shop stays cooler, and operating cost drops with every shift.

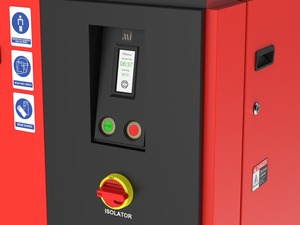

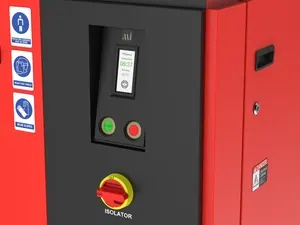

What is the controller?
A programmable touchscreen: time, temperature and power per stored recipe (four of them), with level sensors and interlocks per model. Operators run named recipes; supervisors own the parameters.
Can I trial before committing?
Two routes: the laboratory trial on your parts, or rental — every floor model is in the fleet from $140–$337/week. Most floor machines sell after the rental has already proven the process.
What goes wrong with baths at this scale — and how does the machine help?
Neglect, mostly: oil lids, sludge blankets, dead chemistry. The weir models automate the defences; on all models the ball-valve drain, insulated tank and recipe discipline make good habits cheap. Our filtration and oil-removal guides cover the operating rhythm.
What is in the box?
Basket, gas-strut lid, drain, level sensing, touchscreen controller, manual — 12-month warranty, commissioned advice on chemistry and first recipes included.
