The HX 12, drawn and built

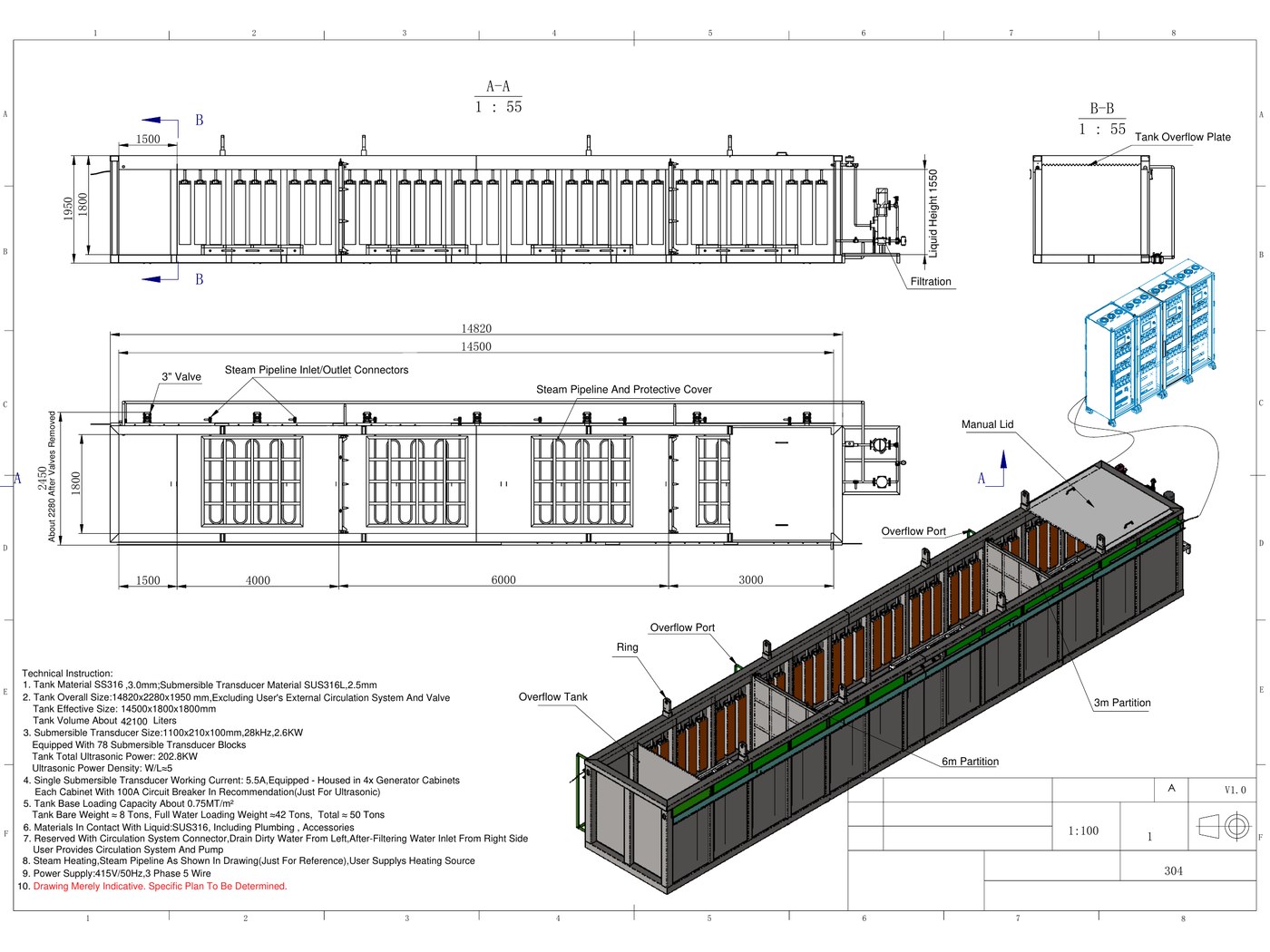

Click to enlargeThe dimensioned general arrangement — UltraMax HX 12. Click to enlarge.
The general arrangement is dimensioned; build photos are the platform under test.
Fourteen and a half metres of tank — that works as three machines.
≈45,540 L · 28 kHz · 202.8 kW ultrasonic power · SS316 wetted · POA, quoted to site
Click to enlargeThe dimensioned general arrangement — UltraMax HX 12. Click to enlarge.
The general arrangement is dimensioned; build photos are the platform under test.
| Tank & capacity | |
|---|---|
| Effective tank (L×W×D) | 11000 × 1800 × 2300 mm · tank lengths can be customised to the bundle |
| Overall tank (L×W×H) | 11320 × 2280 × 2450 mm · indicative — freeboard and framing add height |
| Tank volume | ≈45,540 L |
| Max workpiece | Heat exchanger / bundle length up to 12 m |
| Tank material | SS316, 3.0 mm — wetted parts including plumbing |
| Transducer housings | SS316L, 2.5 mm |
| Floor loading | 0.75 t/m² |
| Weight | ≈8 t bare · ≈42 t filled (≈50 t total) |
| Ultrasonics | |
| Frequency | 28 kHz |
| Transducer blocks | 78 submersible blocks |
| Power per block | 2.6 kW |
| Total ultrasonic power | 202.8 kW |
| Power density | ≈4.45 W/L |
| Generator cabinets | 4 (100 A breaker per cabinet) |
| Services & options | |
| Heating (option) | Steam pipeline, or electric |
| Circulation & filtration (option) | Misonics skid, specified to the deposit. Connections standard on the tank. |
| Drain | 3" valve · overflow tank and ports |
| Electrical & support | |
| Power supply | 415 V / 50 Hz / 3-phase, 5-wire |
| Max power consumption | ≈203 (ultrasonics; steam heat supplied by site) kW |
| Warranty | 12 months |
| Indicative lead time | Approximately 80 working days from order |
| Price | POA — quoted to site, ex GST |
Every dimension here is indicative. Tank length is customised to the bundle, and the overall height depends on the freeboard and the support framing specified for your workshop — so the real envelope is set once we understand the parts and the site, not before. Specifications are confirmed in writing at quotation, and tanks at this scale are quoted as a delivered and commissioned system: installation, services connection and the options you actually need. Talk to our technical sales team before you plan a workshop around these figures.
Built around the full-length heat-exchanger bundle. Internal partitions divide it into 3 m, 6 m and 12 m working zones, so a short bundle does not cost you a 40,000-litre bath.
28 kHz — lower frequency, higher cavitation energy, aimed squarely at heavy scale and hard deposit on exchanger bundles.
Internal partitions divide the 14.5 m tank into 3 m, 6 m and 12 m working zones. You fill and heat only the zone you are using.
This is an operating-cost feature, not a convenience one. Heating, chemistry and treatment all scale with the volume you actually fill. A workshop running mostly short work on a full 40,000-litre bath is paying for capacity it uses a few times a year — zoned working removes that penalty, and lets the 12 replace three separate tanks.
A tank at this scale is not bought off a brochure. This is the UltraMax platform under test before shipping — transducer banks driving the full volume.
Under test on the floor, transducers running.
Clip is silent and loads only when you press play.
Nothing here is a maybe. Pick the options below in the enquiry and the quotation comes back with each one priced — take them or leave them line by line.
Electric clamp-tube bank with baffles and a fitted temperature sensor, or a steam pipeline where your site already has the plant. Sized to your operating temperature and heat-up window.
Circulation connections are standard on the tank. The filtration skid — pump, bag housings, valves and instrumentation on one bunded frame — is specified to what actually comes off your parts, with weirs and coalescers where oil comes with them.
Open tank, manual segment lids, or full-length covers — heat retention, evaporation control and housekeeping at this volume are worth specifying on day one.
Bundle cradles, baskets for loose parts, or a custom fixture to your component — whatever puts the load in square and gets it out clean.
Specify the machine below and every option you pick is priced in the proposal. Go to specify & price →
POA is not a brush-off. Tell us the duty and the options, and what comes back is a real number on a real proposal — the machine, every option you picked, delivery and commissioning to your site.
Each choice becomes a priced line. Not sure? Pick “advise me” and we will size it from your duty.
This is what makes the price real — the deposit and the throughput decide chemistry, heating and filtration.
12 m working length · ≈45,540 L · 28 kHz · 202.8 kW · SS316 — the flagship
Build Your Own Tank works the other way round — enter the part and we calculate the tank, the volume and the ultrasonic power.
3 metresUltraMax HX 3≈11,880 L · 40 kHz · 43.2 kW. SS304. Condensers, coolers and shorter bundles.
See the HX 3 →
6 metresUltraMax HX 6≈23,760 L · 40 kHz · 86.4 kW. SS304, deep section — the fleet workhorse.
See the HX 6 →
9 metresUltraMax HX 9≈29,160 L · 28 kHz · 156 kW nominal. SS316 trough — confirmed at quotation.
See the HX 9 →
Any lengthBuild Your OwnBetween sizes, or past them — enter the part and we calculate the tank, volume and power.
Start configuring →
Bunding to catch what comes off the load, a raised grated deck so the work happens at working height, and a screened washbay for the wet work beside the bath.
Built into the machine from the start, or as a separate unit that drops in beside one already on the floor. Quoted as its own line, ex GST.
