High efficiency

Multi-layer graded-density construction. The layers get progressively finer through the thickness, so coarse solids are caught early and fines deep

Made to order

This media is not held in stock. Polypropylene needlefelt and nylon monofilament mesh are — those two are priced on the site and ship from stock. Everything else, including this one, is built to your specification and quoted. Build the specification and get a price →

Specification

High efficiency

Media codeHE / HiSEP
Standard sizeSize 2 — φ180 × 810 mm, 0.5 m², 17 L
Other sizesSize 1 (0.25 m², 8 L) · Size 3 (0.09 m², 1.3 L) · Size 4 (0.16 m², 2.5 L)
RatingsFine ratings
Max. temperatureMedia dependent
Ring optionsGalvanised steel · stainless steel · polypropylene snap ring
FitsEvery housing we supply — see the range

Exact ratings, ring material, surface finish (singed or glazed) and food-contact compliance are confirmed per order against the manufacturer’s current datasheet.

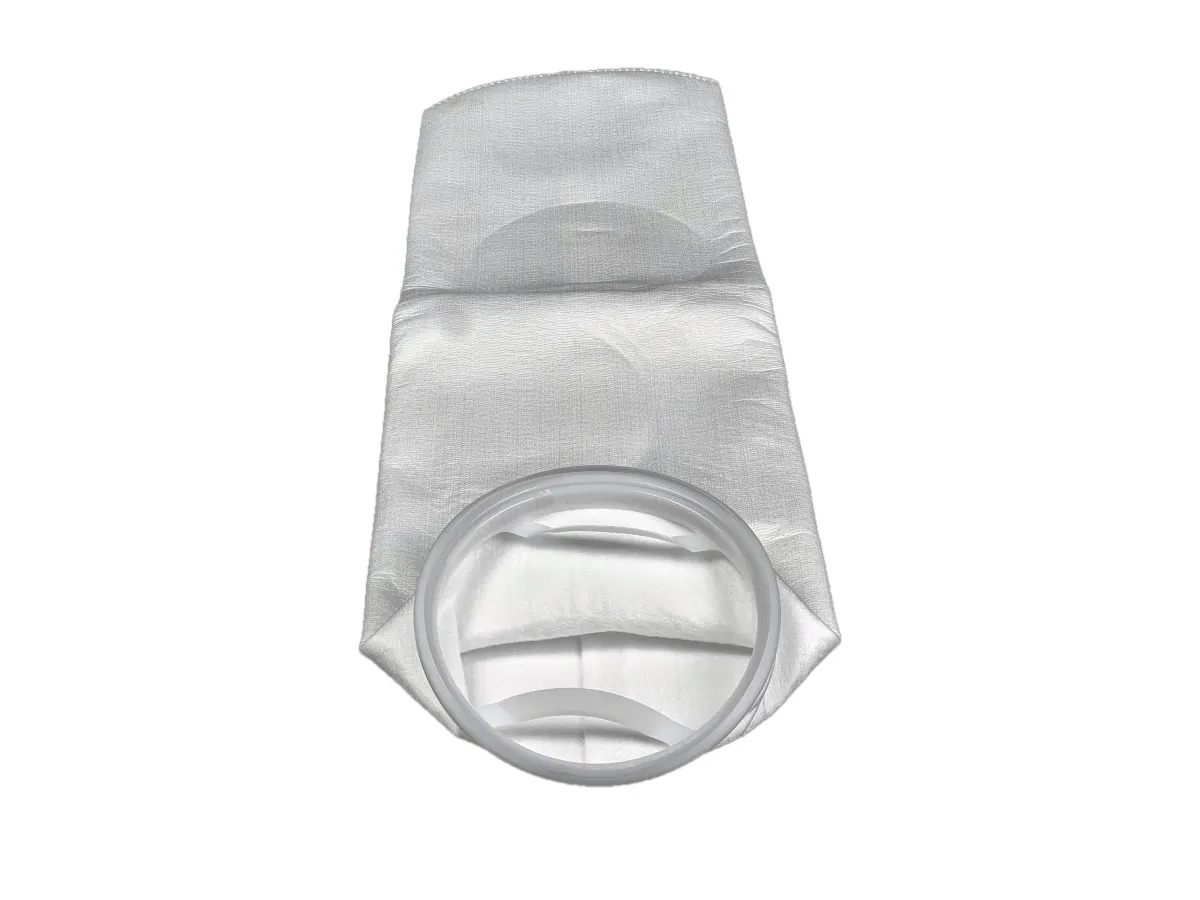

Needlefelt filter bag and moulded polypropylene collar
What it is for

Where this media earns its place

Multi-layer graded-density construction. The layers get progressively finer through the thickness, so coarse solids are caught early and fines deep — giving higher efficiency and roughly double the dirt-holding capacity of a standard felt in the same housing.

Typical duties

Where change frequency is the operating problem, or where a finer rating is needed without shortening runs.

Chemical & service notes

The upgrade path when a standard felt is being changed too often. Same housing, same size — roughly double the area.

Temperature

Media dependent. The housing seal has its own limit — the lower of the two governs.
