Polypropylene mesh

Monofilament polypropylene weave. The absolute-rating option where the chemistry rules out both nylon and polyester

Made to order

This media is not held in stock. Polypropylene needlefelt and nylon monofilament mesh are — those two are priced on the site and ship from stock. Everything else, including this one, is built to your specification and quoted. Build the specification and get a price →

Specification

Polypropylene mesh

Media codePPMO
Standard sizeSize 2 — φ180 × 810 mm, 0.5 m², 17 L
Other sizesSize 1 (0.25 m², 8 L) · Size 3 (0.09 m², 1.3 L) · Size 4 (0.16 m², 2.5 L)
Ratings50–2000 micron — made to order
Max. temperatureUp to 90 °C
Ring optionsGalvanised steel · stainless steel · polypropylene snap ring
FitsEvery housing we supply — see the range

Exact ratings, ring material, surface finish (singed or glazed) and food-contact compliance are confirmed per order against the manufacturer’s current datasheet.

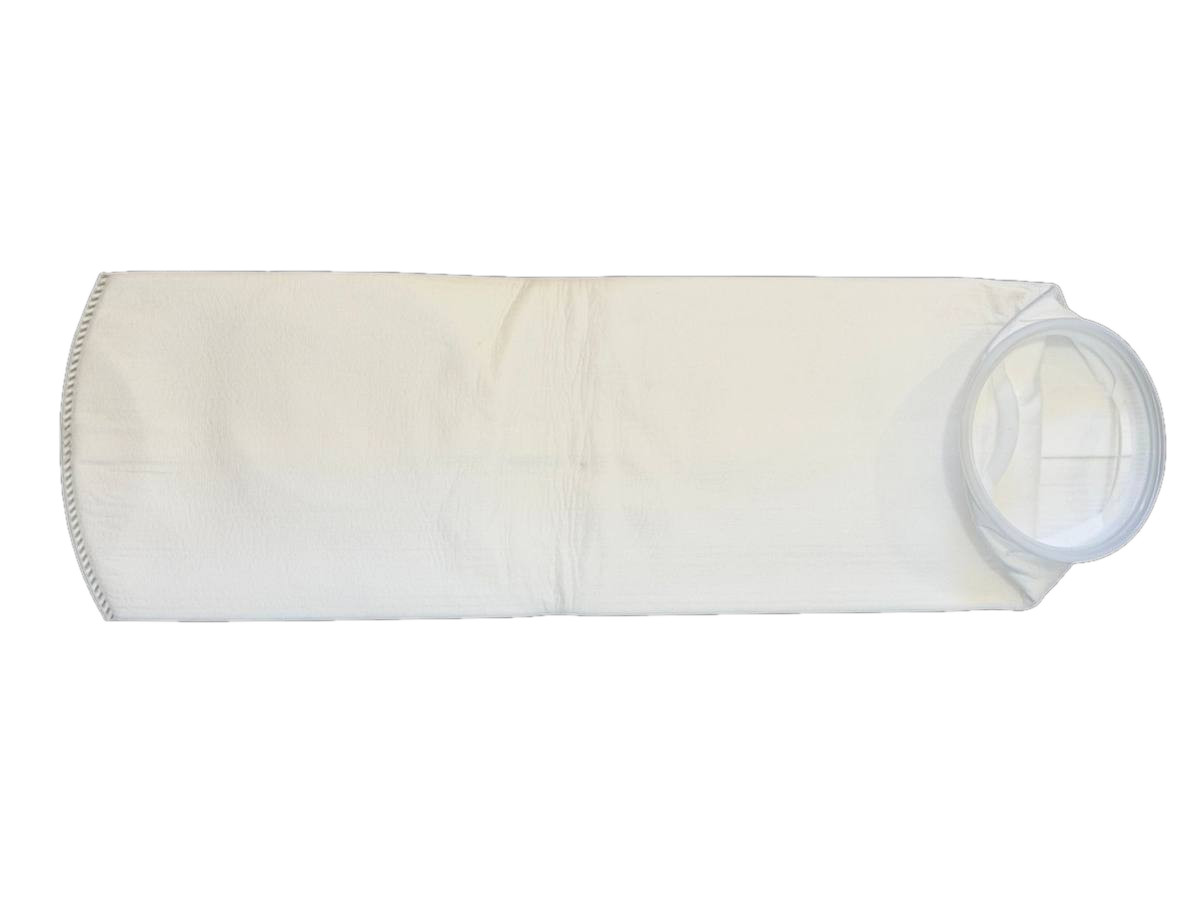

Polypropylene monofilament mesh filter bag
What it is for

Where this media earns its place

Monofilament polypropylene weave. The absolute-rating option where the chemistry rules out both nylon and polyester — broadest chemical resistance of the three meshes.

Typical duties

Aggressive acid and alkali streams, plating, chemical processing.

Chemical & service notes

Broadest chemical resistance of the mesh media. Lowest temperature ceiling.

Temperature

Up to 90 °C. The housing seal has its own limit — the lower of the two governs.
