Polyester mesh

Monofilament polyester weave. Same absolute rating and reusability as nylon mesh, in a medium better suited to acidic duty and with lower moisture pick-up.

Made to order

This media is not held in stock. Polypropylene needlefelt and nylon monofilament mesh are — those two are priced on the site and ship from stock. Everything else, including this one, is built to your specification and quoted. Build the specification and get a price →

Specification

Polyester mesh

Media code	PEMO
Standard size	Size 2 — φ180 × 810 mm, 0.5 m², 17 L
Other sizes	Size 1 (0.25 m², 8 L) · Size 3 (0.09 m², 1.3 L) · Size 4 (0.16 m², 2.5 L)
Ratings	50–2000 micron — made to order
Max. temperature	Up to 150 °C
Ring options	Galvanised steel · stainless steel · polypropylene snap ring
Fits	Every housing we supply — see the range

Exact ratings, ring material, surface finish (singed or glazed) and food-contact compliance are confirmed per order against the manufacturer’s current datasheet.

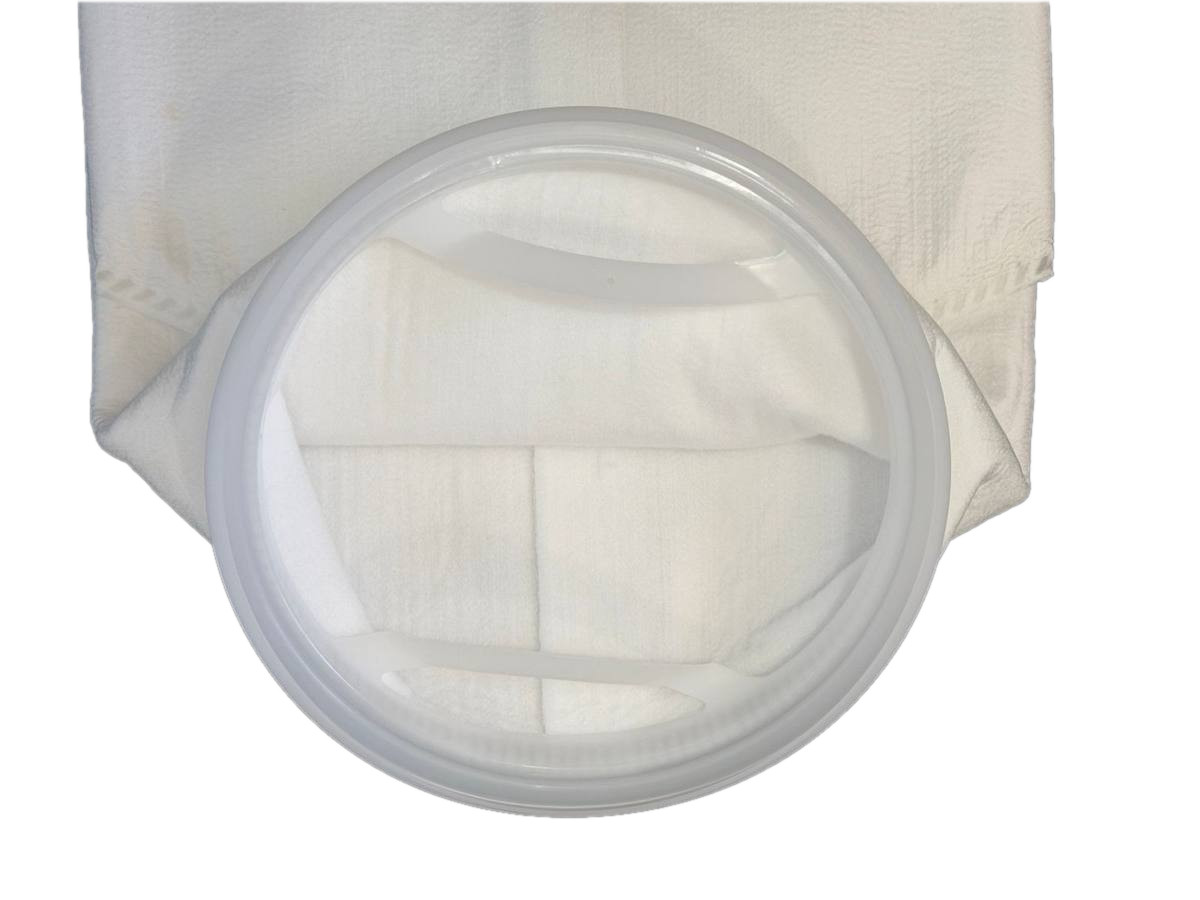

Polyester mesh filter bag mouth and collar

What it is for

Where this media earns its place

Monofilament polyester weave. Same absolute rating and reusability as nylon mesh, in a medium better suited to acidic duty and with lower moisture pick-up.

Typical duties

Acidic process streams, defined cut points, solids recovery where nylon is unsuitable.

Chemical & service notes

Good acid resistance. Not for strong caustic.

Temperature

Up to 150 °C. The housing seal has its own limit — the lower of the two governs.

Other media

If this is not the right one

PE felt

Priced per box · volume rates

Bag price moves with media, micron, ring type and quantity, and drops sharply at volume. Tell us the spec and your annual usage for a per-bag rate and a standing-order price. Get bag pricing →

Build it and see the price

Pick the size, media, micron, collar, handles, seam and finish. The builder gives you a part code and a full specification, and tells you whether the bag is one we hold or one we quote. Minimum five bags, then any number above that.

Build a custom bag specification →

What are you filtering?

Flow rate, fluid, temperature, particle size and how often you want to change bags. We size the housing and the bag around that and quote the pair, delivered and commissioned.
