Nylon mesh

Surface filtration through a precise monofilament nylon weave. An absolute rating rather than a nominal one

Specification

Nylon mesh

Media codeNMO
Standard sizeSize 2 — φ180 × 810 mm, 0.5 m², 17 L
Other sizesSize 1 (0.25 m², 8 L) · Size 3 (0.09 m², 1.3 L) · Size 4 (0.16 m², 2.5 L)
Ratings50–800 micron
Max. temperatureUp to 150 °C
Ring optionsGalvanised steel · stainless steel · polypropylene snap ring
FitsEvery housing we supply — see the range

Exact ratings, ring material, surface finish (singed or glazed) and food-contact compliance are confirmed per order against the manufacturer’s current datasheet.

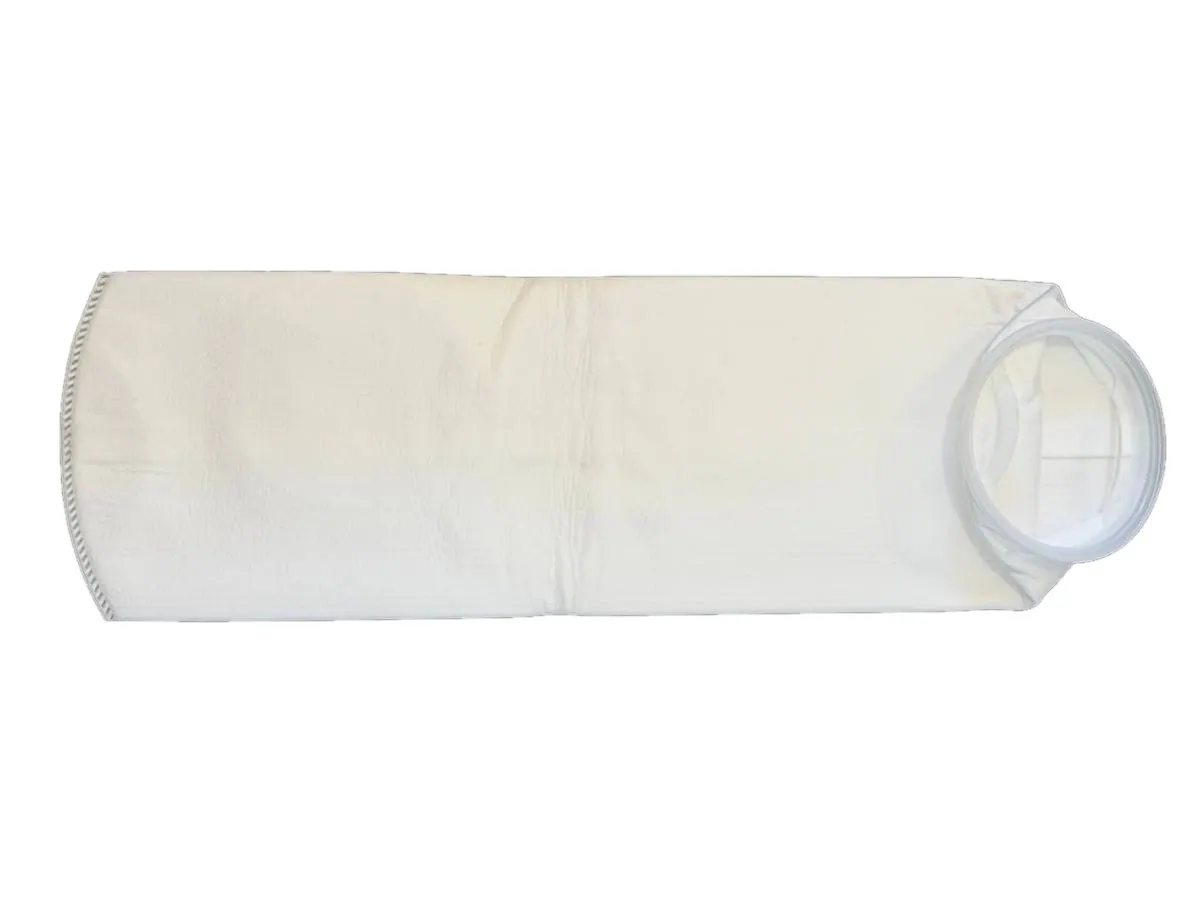

Nylon monofilament mesh filter bag, full length
What it is for

Where this media earns its place

Surface filtration through a precise monofilament nylon weave. An absolute rating rather than a nominal one — nothing larger than the aperture passes — and the bag can be washed and reused.

Typical duties

Defined cut points, solids recovery, high-abrasion duties, reusable applications.

Chemical & service notes

Strong and abrasion resistant. Good in alkali and most solvents. Not for strong acids.

Temperature

Up to 150 °C. The housing seal has its own limit — the lower of the two governs.
