Ultrasonic Cleaner Sizes: 3 L to 46,000 L

Before you compare

Tank litres, useful litres and basket size

Model names and headline litres describe the tank. They do not tell you whether your part fits. Each machine has three published figures, and they answer different questions.

Tank volume is the whole tank, including the pockets that carry the resonators, heaters and platform. Useful volume is the working volume your parts sit in. Basket size and working depth are the space the part actually has, and they decide fit.

Model	Tank volume	Useful volume	Basket (L × W)	Working depth
PowerSonic PS 620	20.7 L	11 L	440 × 250 mm	100 mm
MSX 15	15 L	9.4 L	320 × 225 mm	130 mm
MSX 30	30 L	16.2 L	490 × 235 mm	140 mm
MSX 50	50 L	45 L	500 × 300 mm	300 mm

Read across the rows. The PS 620 has the larger tank, 20.7 L against 15 L, but the MSX 15 holds 30 mm more liquid over its basket, so a taller part fits the smaller-litre machine. The MSX 30 and MSX 50 baskets are within 10 mm of each other in length, yet the MSX 50 has more than twice the working depth. A part has to sit in the basket, fully under the liquid, with clearance. Size from the part, not the litres.

All specifications, including dimensions, ultrasonic power and volume, are confirmed at quotation.

Benchtop · 3–10 L

3–10 L: PowerSonic benchtop

Three heated benchtop machines with 240–250 mm baskets and 80–100 mm of working depth. All run a single 40 kHz band and heat to 80 °C.

Typical parts: Instrument cassettes, jewellery, dental and clinic kit, circuit-board batches, and a carburettor and injector set.

PowerSonic benchtop ultrasonic cleaners, PS 603 to PS 620

Model	Tank	Basket or tank opening · working depth	Frequency	Ultrasonic power	Heating	Price ex GST
PowerSonic PS 603	3.3 L	240 × 135 mm basket · 80 mm	40 kHz	200 W	0.3 kW, to 80 °C	$1,475
PowerSonic PS 605	5.7 L	240 × 120 mm basket · 100 mm	40 kHz	350 W	0.3 kW, to 80 °C	$1,805
PowerSonic PS 610	10.7 L	250 × 200 mm basket · 100 mm	40 kHz	400 W	0.3 kW, to 80 °C	$2,135

Light-industrial bench · 15–30 L

15–30 L: MSX 15, PowerSonic PS 620 and MSX 30

The step from occasional cleaning to daily bench duty. The MSX machines add load sensing and stepless 10–100% power; the MSX 30 adds a second frequency, 25 kHz for heavy soils and 45 kHz for finishing.

Typical parts: Injectors, single carburettors, tooling and daily trays (MSX 15); carburettor sets and firearm components (MSX 30); bicycle drivetrains and injector and carburettor servicing (PS 620).

Misonics MSX 30 benchtop ultrasonic parts cleaner, lid open, basket in the tank

Model	Tank	Basket or tank opening · working depth	Frequency	Ultrasonic power	Heating	Price ex GST
MSX 15	15 L	320 × 225 mm basket · 130 mm	40 kHz	300 W	0.6 kW, to 80 °C	$3,970
PowerSonic PS 620	20.7 L	440 × 250 mm basket · 100 mm	40 kHz	700 W	0.3 kW, to 80 °C	$2,795
MSX 30	30 L	490 × 235 mm basket · 140 mm	25 / 45 kHz dual	650 W	1 kW, to 80 °C	$5,980

Floor-standing · 50–70 L

50–70 L: MSX 50 and MSX 70

The first floor-standing machines: 3 mm SS316 insulated tanks, 25 kHz at 1,500 W with load sensing, 300 mm of working depth, on a 240 V single-phase supply.

Typical parts: Cylinder heads, carburettor banks, pump housings and tooling trays (MSX 50); intake manifolds, gearbox casings and rack-scale trays (MSX 70); toolroom mould maintenance.

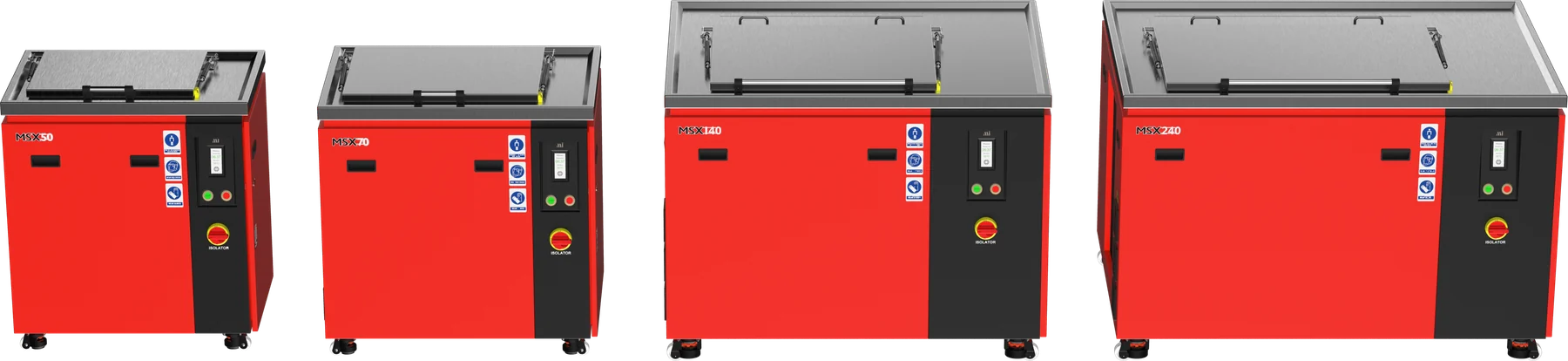

The MSX floor-standing range shown to scale, MSX 50, MSX 70, MSX 140 and MSX 240

Model	Tank	Basket or tank opening · working depth	Frequency	Ultrasonic power	Heating	Price ex GST
MSX 50	50 L	500 × 300 mm basket · 300 mm	25 kHz	1,500 W	2.4 kW, to 80 °C	From $13,770
MSX 70	70 L	600 × 400 mm basket · 300 mm	25 kHz	1,500 W	2.4 kW, to 80 °C	From $15,900

Floor-standing · 140–240 L

140–240 L: MSX 140, MSX 150 and MSX 240

The top of the MSX floor range. The MSX 140 and MSX 240 carry a displacement weir and oil capture and run on 415 V three-phase; the MSX 150 pairs a 150 L ultrasonic tank with a 150 L rinse tank.

Typical parts: Engine blocks, DPFs and heat-exchanger cores (MSX 140); carburettor banks to cylinder heads, with the rinse alongside (MSX 150); truck engine blocks, large housings and batch trays of heavy parts (MSX 240).

Misonics MSX floor-standing ultrasonic tanks, MSX 50 through MSX 240

Model	Tank	Basket or tank opening · working depth	Frequency	Ultrasonic power	Heating	Price ex GST
MSX 140	140 L	700 × 500 mm basket · 400 mm	25 kHz	3,000 W	4 kW, to 80 °C	Quoted to site
MSX 150	2 × 150 L (wash + rinse)	850 × 340 mm basket · 300 mm	25 kHz	3,000 W	2.4 kW, to 80 °C	Quoted to site
MSX 240	240 L	900 × 500 mm basket · 500 mm	25 kHz	4,500 W	4 kW, to 80 °C	Quoted to site

Heavy industrial · 180–4,433 L

180–4,433 L: EvoSonic EVS

Seven standard tanks with an elevator platform that does the lift, the immersion and the drain hold. Common to all: 25 kHz, stepless 10–100% power, weir bath defence and insulated SS316 tanks. Sizes are published as tank volume.

Typical parts: Engine blocks and heads, radiators and heat-exchanger cores, DPFs, power-station filter elements, mining final drives and undercarriage, and large dies and castings.

Misonics EVS 7000-PL heavy industrial ultrasonic tank with access platform

Model	Tank	Basket or tank opening · working depth	Frequency	Ultrasonic power	Heating	Price ex GST
EVS 180	180 L	750 × 500 mm tank · 480 mm	25 kHz	3,000 W	12 kW	Quoted to site
EVS 300	300 L	750 × 750 mm tank · 400 mm	25 kHz	9,000 W	12 kW	Quoted to site
EVS 600	600 L	1,200 × 800 mm tank · 550 mm	25 kHz	10,500 W	21 kW	Quoted to site
EVS 800	800 L	1,570 × 630 mm tank (1,500 × 560 mm basket) · 700 mm	25 kHz	15,000 W	21 kW	Quoted to site
EVS 1200	1,200 L	1,500 × 1,200 mm tank · 600 mm	25 kHz	18,000 W	28 kW	Quoted to site
EVS 1500-PL	1,550 L	2,000 × 900 mm basket · 600 mm	25 kHz (40 kHz optional)	18,000 W	28 kW	Quoted to site
EVS 7000-PL	4,433 L	2,495 × 1,516 mm tank · 1,172 mm	25 kHz	63,000 W	70 kW	Quoted to site

Part outside the table? The custom EVS configurator sizes a tank from your part dimensions and weight.

Tube bundle tanks · 12,000–46,000 L

12,000–46,000 L: UltraMax HX

Four tanks sized to the longest heat exchanger bundle you clean: 3, 6, 9 and 12 metres. Crane loaded from above, 415 V three-phase, with heating and filtration as priced options.

Typical parts: Shell-and-tube heat exchanger bundles, condensers and coolers, cleaned whole: tube sheet, tubes, baffles and shell in one immersion.

Large Misonics immersion tank in build, transducer plates fitted to the tank wall

Model	Tank	Basket or tank opening · working depth	Frequency	Ultrasonic power	Heating	Price ex GST
UltraMax HX 3	12,000 L	3,000 × 2,200 × 1,800 mm tank · bundles to 3 m	40 kHz	43.2 kW	Priced option: electric or steam	Quoted to site
UltraMax HX 6	≈23,760 L	6,000 × 2,200 × 1,800 mm tank · bundles to 6 m	40 kHz	86.4 kW	Priced option: electric or steam	Quoted to site
UltraMax HX 9	≈29,160 L	9,000 × 1,800 × 1,800 mm tank · bundles to 9 m	28 kHz	156 kW nominal	Priced option: electric or steam	Quoted to site
UltraMax HX 12	≈45,540 L	11,000 × 1,800 × 2,300 mm tank · bundles to 12 m	28 kHz	202.8 kW	Priced option: electric or steam	Quoted to site

Between sizes, or longer? Size your own bundle tank.

Sizing

Measure your largest part

Measure the longest dimension of the biggest part you clean, then its height as it will sit in the basket. The row below is the smallest standard machine with a basket, or tank, long enough and deep enough. Check the width and the load rating on the model page as well.

Longest part dimension	Working depth available	Smallest standard machine
Up to 240 mm	80–100 mm	PS 603 / PS 605 · 240 mm baskets
Up to 250 mm	100 mm	PS 610 · 250 × 200 mm basket
Up to 320 mm	130 mm	MSX 15 · 320 × 225 mm basket
Up to 440 mm, part under 100 mm tall	100 mm	PS 620 · 440 × 250 mm basket
Up to 490 mm	140 mm	MSX 30 · 490 × 235 mm basket
Up to 500 mm	300 mm	MSX 50 · 500 × 300 mm basket
Up to 600 mm	300 mm	MSX 70 · 600 × 400 mm basket
Up to 700 mm	400 mm	MSX 140 · 700 × 500 mm basket
Up to 850 mm, part no wider than 340 mm	300 mm	MSX 150 · 850 × 340 mm basket
Up to 900 mm	500 mm	MSX 240 · 900 × 500 mm basket
Up to 1,500 mm	700 mm	EVS 800 · 1,500 × 560 mm basket
Up to 2,000 mm	600 mm	EVS 1500-PL · 2,000 × 900 mm basket
Deeper than 700 mm	1,172 mm	EVS 7000-PL · 2,495 × 1,516 mm tank
Heat exchanger bundles, 3 to 12 m	—	UltraMax HX 3, 6, 9 or 12 · sized by bundle length
Longer, wider or heavier	—	Custom build · tank drawn around the part

Dimensions are the published basket and working-depth figures. EvoSonic sizes between these rows are in the EvoSonic table above. Clearance, part weight and how the part will be fixtured all change the answer, so send the part envelope with your enquiry.

Questions

Sizing questions

Is a 30 L ultrasonic cleaner big enough for a cylinder head?

It depends on the head, not the litres. The MSX 30 basket is 490 × 235 mm with 140 mm of working depth, and the head has to sit inside that, fully under the liquid, with clearance. If it is longer, wider or taller, it needs a bigger machine. The MSX 50, with a 500 × 300 mm basket and 300 mm of working depth, is the smallest machine in the range specified for cylinder heads.

What is the largest ultrasonic cleaner Misonics builds?

The largest standard machine is the UltraMax HX 12: a tank of about 45,540 litres for heat exchanger bundles up to 12 metres long, with 202.8 kW of ultrasonic power at 28 kHz. Beyond the four standard UltraMax sizes, tanks are drawn around the part as custom builds.

Does a bigger tank clean better?

No. The result comes from frequency, chemistry and its dilution ratio, temperature, cycle time and how the power is distributed through the bath, not from volume. A bigger tank spreads its power through more liquid: the MSX 50 carries 30 W/L, the MSX 240 19 W/L. Oversizing costs once on the machine and again every day on chemistry and power, so choose the smallest tank your part fits in, with clearance.

How much solution does a 30 L tank actually hold?

The MSX 30 tank is 30 litres. Its useful volume, the space your parts sit in, is 16.2 litres: a 490 × 235 mm basket area with 140 mm of working depth. Tank volume is the whole tank, including the pockets that carry the resonators, heaters and platform, so size against the useful volume and the basket.

Can I get a custom size?

Yes. Above the benchtop range, tanks can be drawn around the part. The custom EVS configurator takes your part dimensions and weight, and UltraMax HX tanks can be sized to any bundle length. Send the part envelope, the soil and the throughput, and the tank, power and heating are specified from those.
